  • 22326EMW33 SNR Bearing (130х280х93 mm.)
  • 22326EMW33 SNR Bearing (130х280х93 mm.)
  • 22326EMW33 SNR Bearing (130х280х93 mm.)
Features
Brand SNR
Designation 22326EMW33

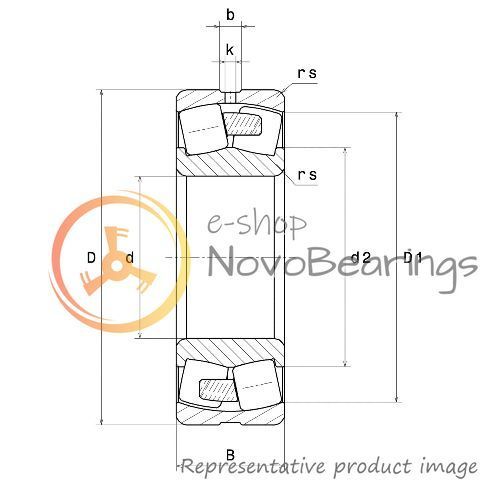

Dimensions [d x D x W] 130х280х93 mm.
Bore diameter (d) 5.118 in. / 130 mm.
Outside diameter (D) 11.024 in. / 280 mm.
Width (B) 3.661 in. / 93 mm.
Weight 12.6552 lbs. / 27.9 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

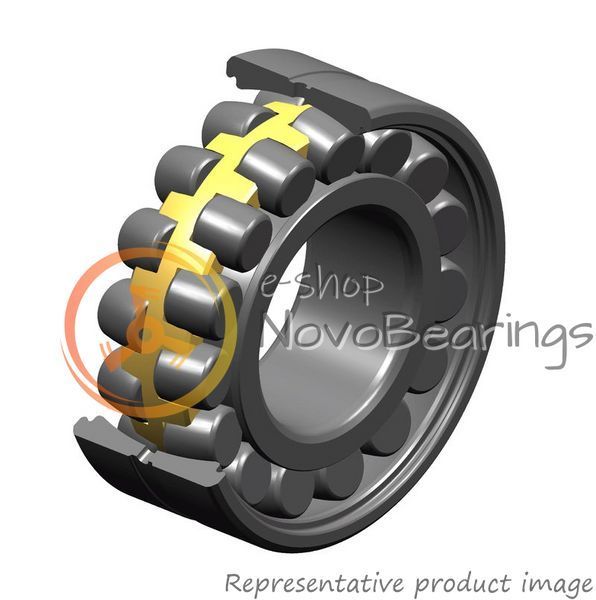

Double-row open spherical roller bearing SNR 22326EMW33 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 2400 rpm. Design dynamic load 1330 kN, design static load 1400 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
