Features
Brand SNR
Designation 22218EAKW33ZZC3
Dimensions [d x D x W] 90х160х40 mm.
Bore diameter (d) 3.543 in. / 90 mm.
Outside diameter (D) 6.299 in. / 160 mm.
Width (B) 1.575 in. / 40 mm.
Weight 1.5059 lbs. / 3.32 kg.
Sealing Shield on both sides
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Tapered 1:12
Outer ring type Cylindrical
Description

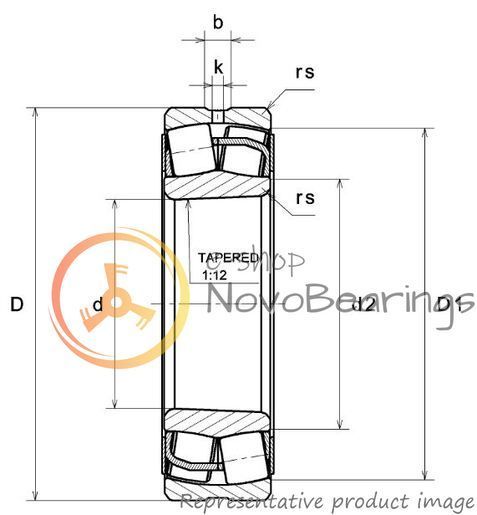

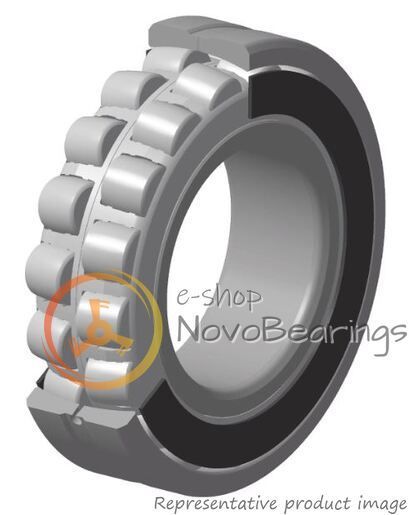

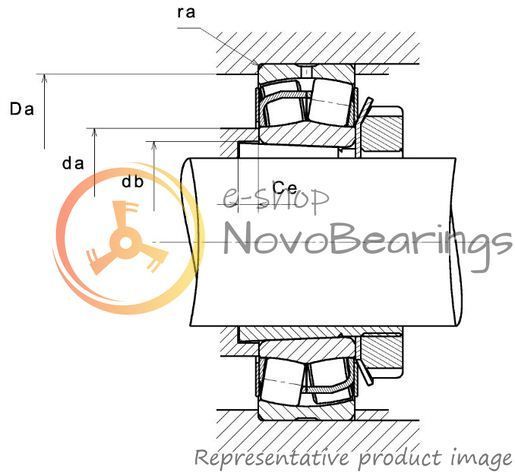

Double-row closed spherical roller bearing SNR 22218EAKW33ZZC3 with a tapered bore (taper 1:12). Suitable for installation on a cylindrical shaft using a withdrawal or adapter sleeve (not included in the delivery set, must be selected separately). Steel cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 5100 rpm. Design dynamic load 384 kN, design static load 398 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
