  • 22210EAW33ZZC3 SNR Bearing (50х90х23 mm.)
  • 22210EAW33ZZC3 SNR Bearing (50х90х23 mm.)
  • 22210EAW33ZZC3 SNR Bearing (50х90х23 mm.)
Features
Brand SNR
Designation 22210EAW33ZZC3
Dimensions [d x D x W] 50х90х23 mm.
Bore diameter (d) 1.969 in. / 50 mm.
Outside diameter (D) 3.543 in. / 90 mm.
Width (B) 0.906 in. / 23 mm.
Weight 0.2858 lbs. / 0.63 kg.
Sealing Shield on both sides
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

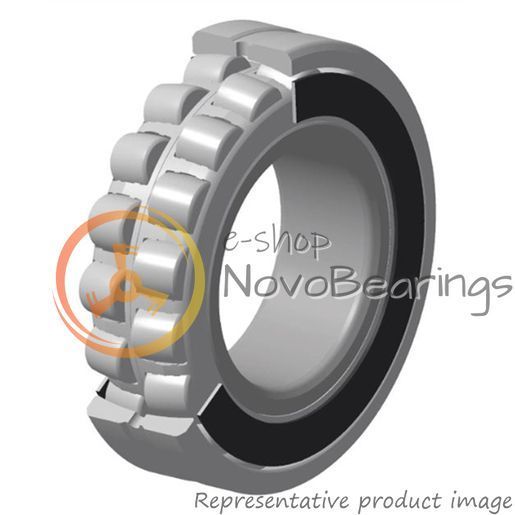

Double-row closed spherical roller bearing SNR 22210EAW33ZZC3 for cylindrical shafts. Steel cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 9100 rpm. Design dynamic load 130 kN, design static load 124 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
