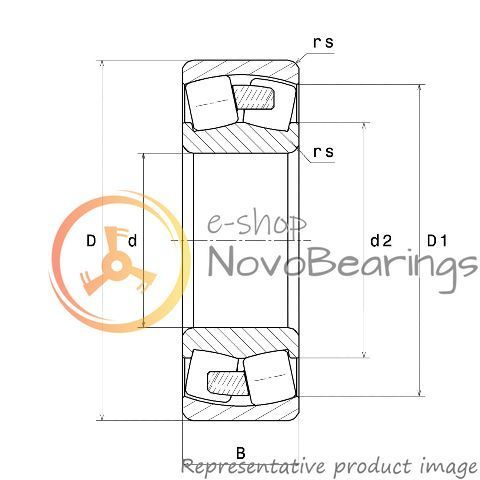

  • 22208EMC3 SNR Bearing (40х80х23 mm.)
  • 22208EMC3 SNR Bearing (40х80х23 mm.)
Features
Brand SNR
Designation 22208EMC3
Dimensions [d x D x W] 40х80х23 mm.
Bore diameter (d) 1.575 in. / 40 mm.
Outside diameter (D) 3.15 in. / 80 mm.
Width (B) 0.906 in. / 23 mm.
Weight 0.2404 lbs. / 0.53 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

Double-row open spherical roller bearing SNR 22208EMC3 for cylindrical shafts. Solid brass separator.

The maximum rotation speed is 11000 rpm. Design dynamic load 110 kN, design static load 98 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
