  • 22205EMW33C3 SNR Bearing (25х52х18 mm.)
  • 22205EMW33C3 SNR Bearing (25х52х18 mm.)
  • 22205EMW33C3 SNR Bearing (25х52х18 mm.)
Features
Brand SNR
Designation 22205EMW33C3

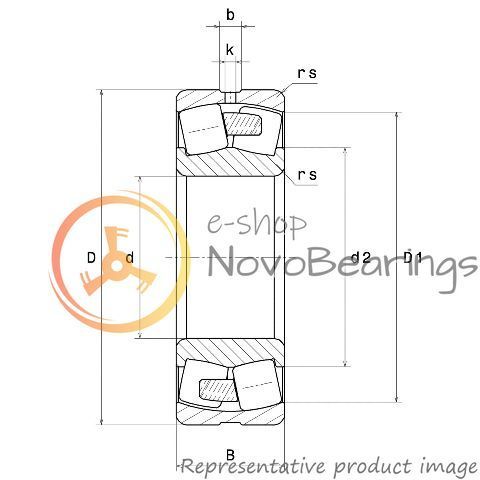

Dimensions [d x D x W] 25х52х18 mm.
Bore diameter (d) 0.984 in. / 25 mm.
Outside diameter (D) 2.047 in. / 52 mm.
Width (B) 0.709 in. / 18 mm.
Weight 0.0726 lbs. / 0.16 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

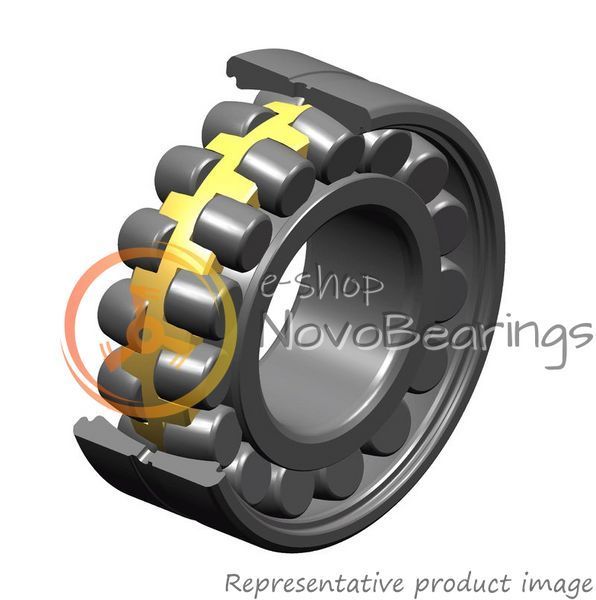

Double-row open spherical roller bearing SNR 22205EMW33C3 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 17000 rpm. Design dynamic load 54.2 kN, design static load 42.8 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

22205EMW33C3 SNR Bearing (25х52х18 mm.)

Out of stock
SKU: 22205EMW33C3SNR25X52X18!#_
Price upon request
