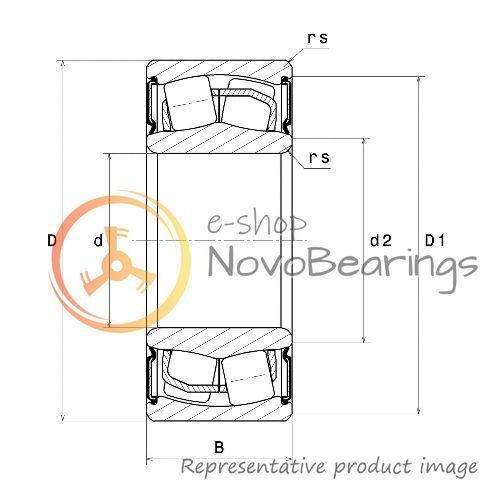

  • 10X22210EAEEL SNR Bearing (50х90х28 mm.)
  • 10X22210EAEEL SNR Bearing (50х90х28 mm.)
  • 10X22210EAEEL SNR Bearing (50х90х28 mm.)
Features
Brand SNR
Designation 10X22210EAEEL
Dimensions [d x D x W] 50х90х28 mm.
Bore diameter (d) 1.969 in. / 50 mm.
Outside diameter (D) 3.543 in. / 90 mm.
Width (B) 1.102 in. / 28 mm.
Weight 0.3221 lbs. / 0.71 kg.
Sealing Seal on both sides
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

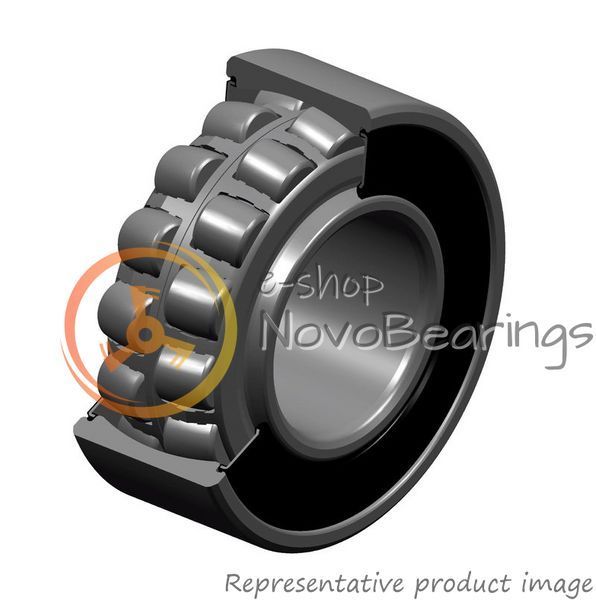

Double-row closed spherical roller bearing SNR 10X22210EAEEL for cylindrical shafts. Steel separator.

The maximum rotation speed is 1900 rpm. Design dynamic load 130 kN, design static load 124 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
