Tapered 1:12 bore type, with H2306 adapter sleeve is suitable for 0.984 in. / 25 mm. shaft diametr, outer ring surface is spherical, inner ring extented symmetrically on both sides, tapered bore and adapter sleeve locking.
Made of hardened carbon chromium bearing steel, most widely used material for bearing rings and rolling elements.

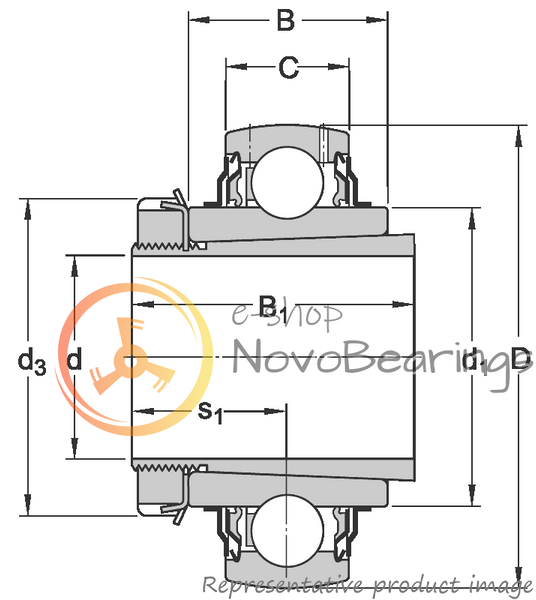

Principal dimensions is 0.984х2.441х1.496 in. equal to 25х62х38 mm.
The tapered bore facilitates ease of mounting via adapter/withdrawal sleeves.
Adapter sleeve H2306 needs to be ordered separately.

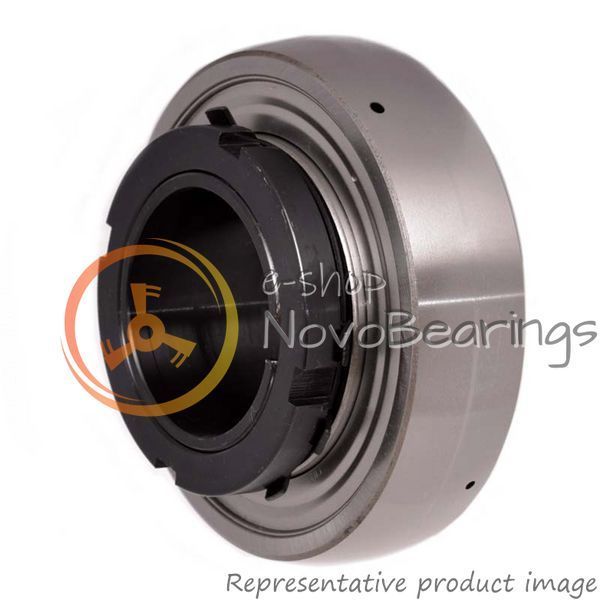

The inner ring is located on the shaft by means of an adapter sleeve with a locknut and a tab washer, highly suitable for constant and alternating directions of rotation and for high speeds. As a result of the force locking connection, there is no occurrence of fretting corrosion between the shaft and the bore of the adapter sleeve.
Without coating.

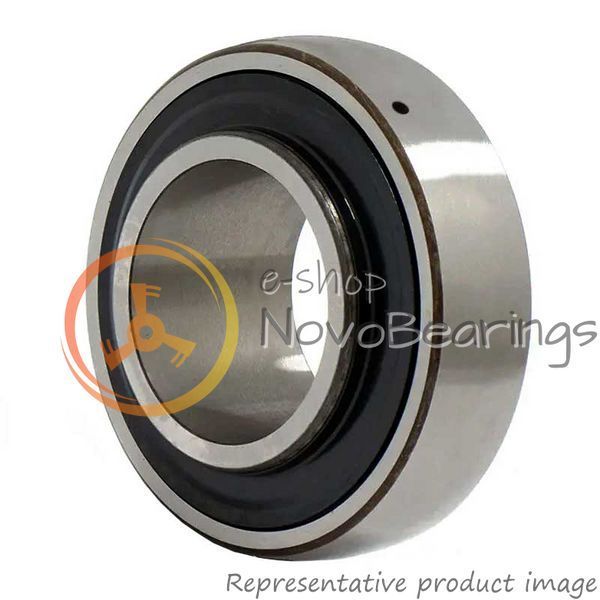

Two lubrication holes in the outer ring, one on each side, positioned 120° apart for re-lubrication feature.

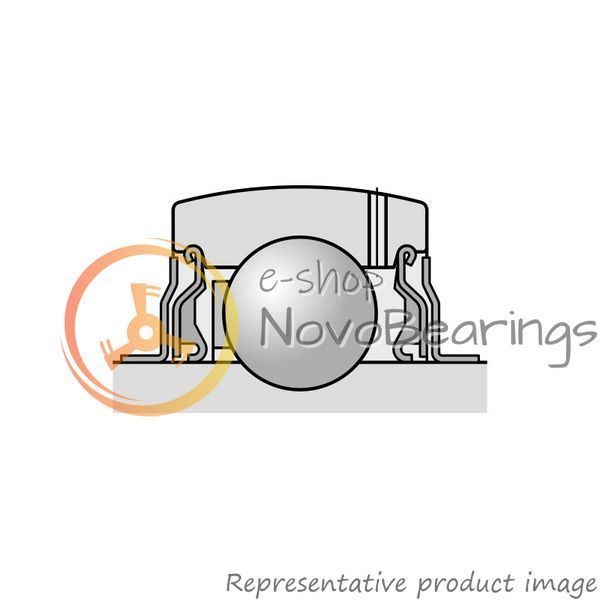

Capped by contact seal and an additional plain sheet steel flinger on both sides. Interference fit for the flinger on the inner ring shoulder to improve considerably the effectiveness of the seal without increasing friction. Greased with the appropriate amount of high quality grease under clean conditions. Recommended for the more contaminated environments.
Relubrication can extend bearing service life if the bearing have lubrication holes.
Polymer cage.
Metric series product.

Radial insert ball bearings are based on sealed deep groove ball bearings, this is ready-to-fit machine elements. They are highly suitable where predominantly radial loads must be supported. These bearings also give quieter running and lower vibration levels than standard radial insert ball bearings.

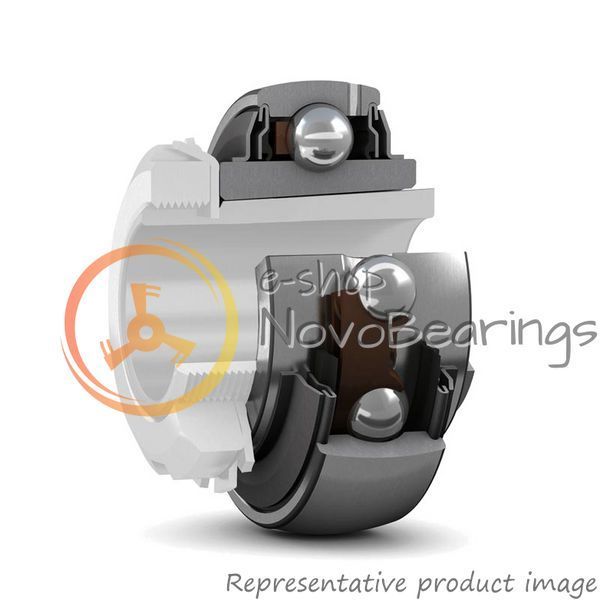

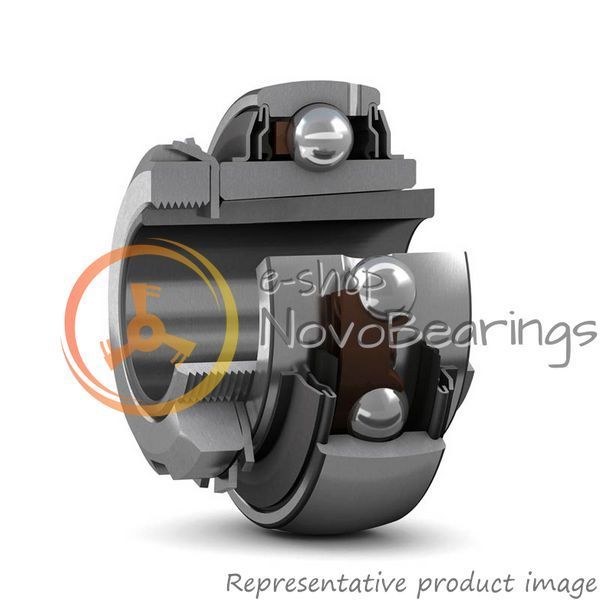

Picture for illustration purposes only, product may differ from image. See technical specification for details.
