Cylindrical bore type for 0.984 in. / 25 mm. shaft diametr, outer ring surface is spherical, inner ring extented on both sides with set screw locking.
Made of stainless steel, greater chemical and corrosion resistance.
Have a lower load carrying capacity than same-sized bearings made of carbon chromium bearing steel.
Principal dimensions is 0.984х2.047х1.343 in. equal to 25х52х34.1 mm.
The inner ring is located on the shaft by two cup point hexagonal set screws offset by 120°, suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation.
Without coating.
Without relubrication feature, have no lubrication holes.
Capped on both sides by contact seal and an additional flinger with a vulcanized NBR lip, which seals axially against the standard seal. Have the space between the flinger lip and the inner ring shoulder filled with grease to provide additional protection. Greased with the appropriate amount of high quality grease under clean conditions. Recommended for very contaminated environments.
Relubrication can extend bearing service life if the bearing have lubrication holes.
Polymer cage.
Metric series product.

Radial insert ball bearings are based on sealed deep groove ball bearings, this is ready-to-fit machine elements. They are highly suitable where predominantly radial loads must be supported. These bearings also give quieter running and lower vibration levels than standard radial insert ball bearings.

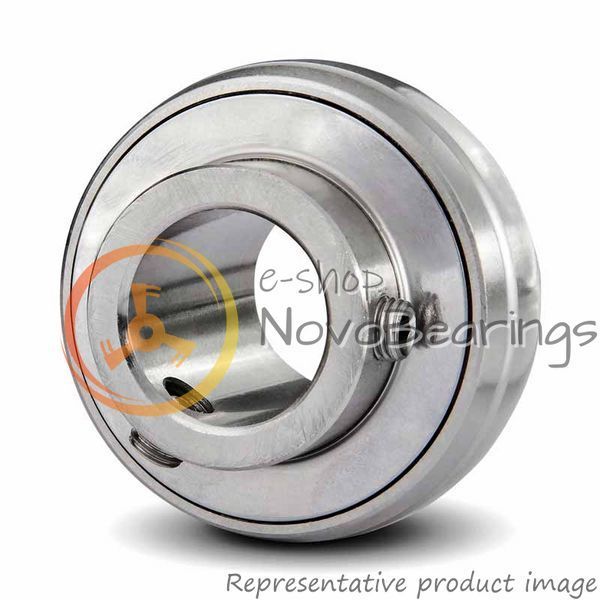

Picture for illustration purposes only, product may differ from image. See technical specification for details.
