Cylindrical bore type for 2.756 in. / 70 mm. shaft diametr, outer ring surface is cylindrical.
Made of through-hardened, ground and phosphated bearing steel. The bearing rings with manganese phosphate coating, which is highly resistant to corrosion and wear.
Principal dimensions is 2.756х4.134х1.929 in. equal to 70х105х49 mm.
Without seals.
Regular relubrication required, can be relubricated via lubrication holes and an annular groove in both rings. Steel/steel sliding contact surface combination: high-strength, phosphated and treated with a special running-in lubricant. Sliding contact surface have to be lubricated before use.
In tilt motion of spherical plain bearings, the inner ring and shaft locating washer move relative to the outer ring and housing locating washer in a direction transverse to the bearing axis.
The maximum permissible tilt angle α must be observed to 6 °.
Metric series product.

Radial spherical plain bearings allow spatial adjustment movements and can support radial, combined or axial loads, and also misalignment. Suitable for heavy static, alternating or impact loads.

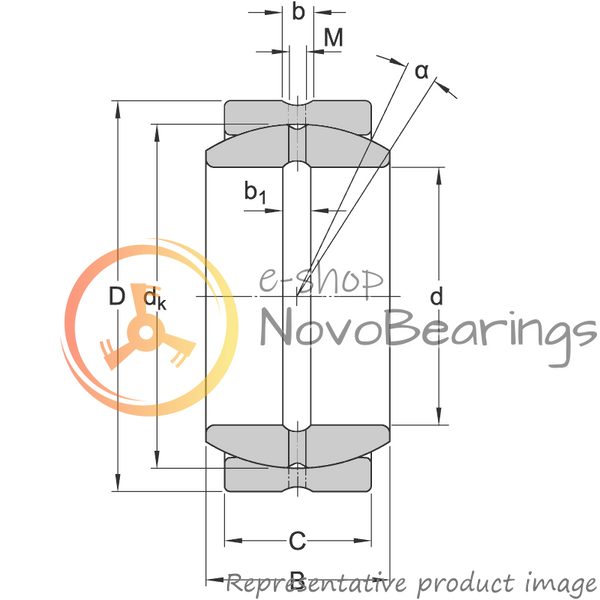

Picture for illustration purposes only, product may differ from image. See technical specification for details.
