Cylindrical bore type for 3.937 in. / 100 mm. shaft diametr, outer ring surface is cylindrical.
Made of hardened carbon chromium bearing steel, most widely used material for bearing rings and rolling elements.

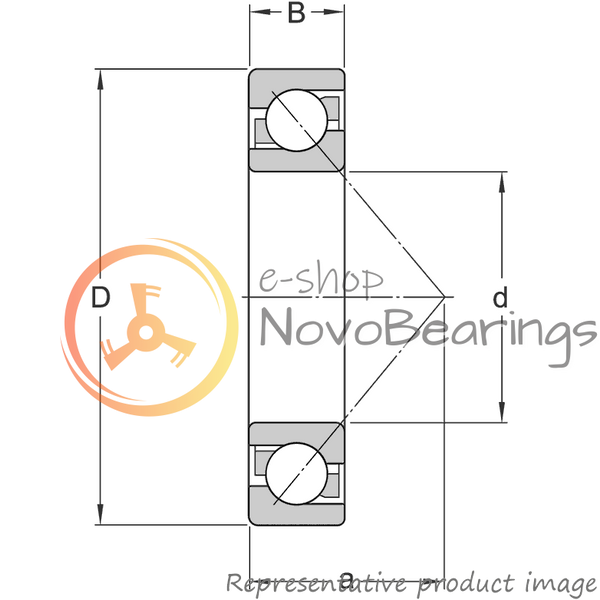

Principal dimensions is 3.937х8.465х1.850 in. equal to 100х215х47 mm.
Open type bearing without sealing. Require little maintenance.
Contact angle is 40 °
Two-piont (normal) contact type.
Polymer cage.
Metric series product.

Angular contact ball bearings suitable for radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting higher axial forces acting in one direction.

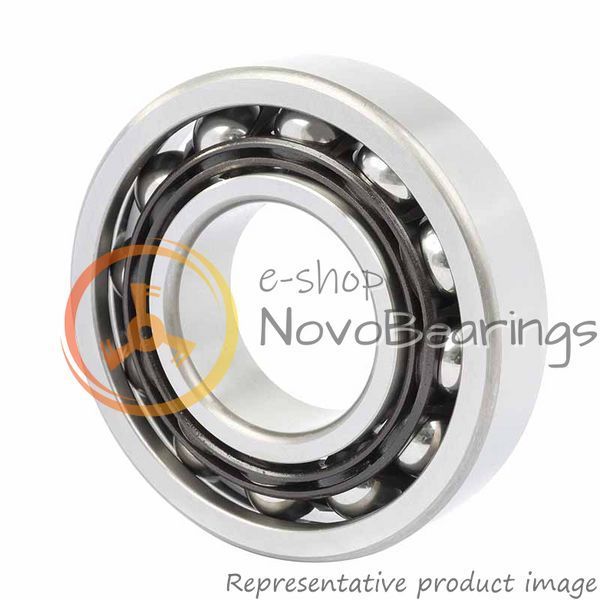

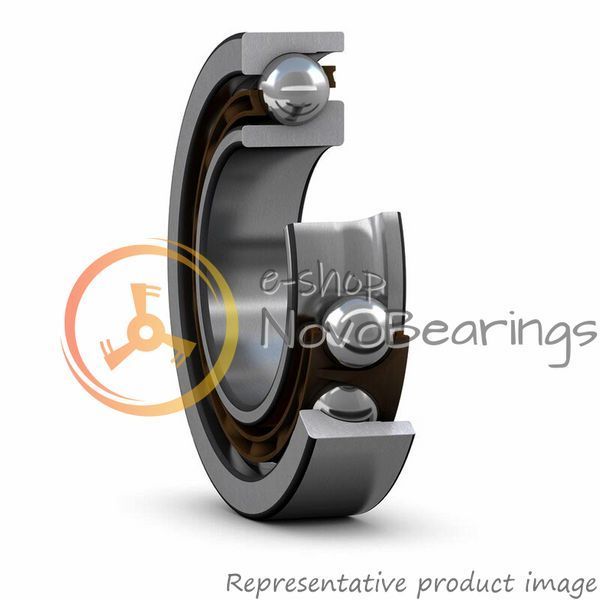

Picture for illustration purposes only, product may differ from image. See technical specification for details.
