Cylindrical bore type for 2.756 in. / 70 mm. shaft diametr, outer ring surface is cylindrical.
The bearing rings are made of through-hardened carbon bearing steel. Ceramic rolling elements, made from silicon nitride.

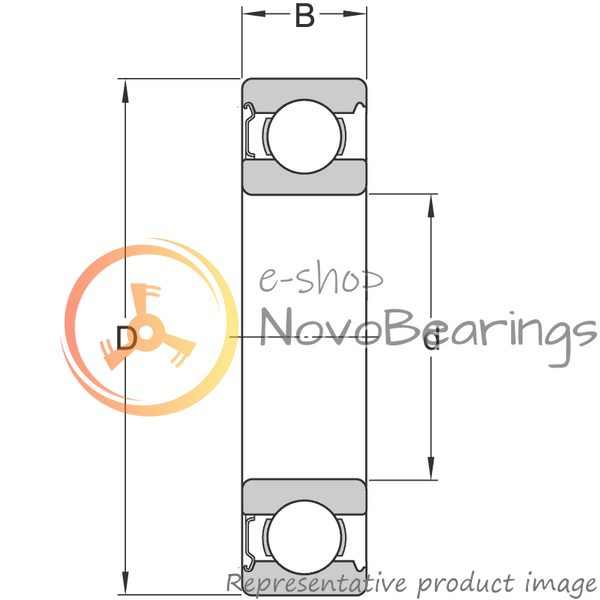

Principal dimensions is 2.756х5.906х1.378 in. equal to 70х150х35 mm.
Capped by non-contact steel shield on one side, filled with the appropriate amount of high quality grease under clean conditions. Typically require less maintenance than open type bearings.
Sheet metal cage.
Metric series product.
Most widely used bearing type, optimized for low noise and low vibration, provide low friction and high rotational speeds. Capped bearings require less maintenance than open type bearings.

Hybrid ceramic bearings contribute higher performance, longer service life and reduced maintenance requirements, they can lead to reduced energy use and fewer resources.
This bearing suitable for high speeds, offer electrical insulation and superior durability in challenging or extreme application conditions.

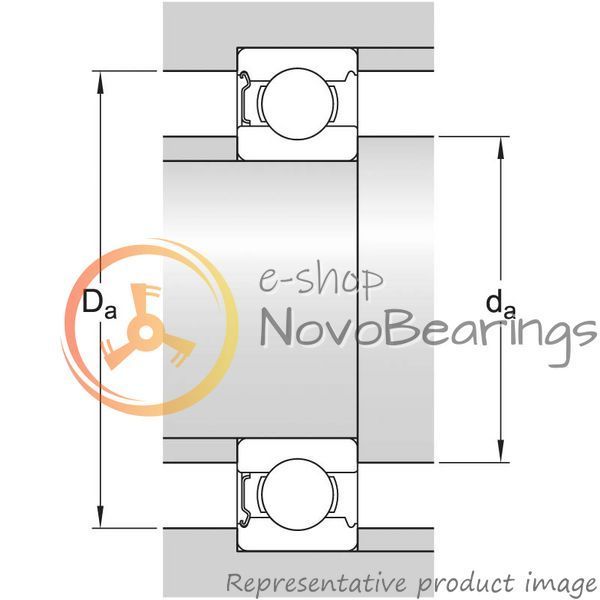

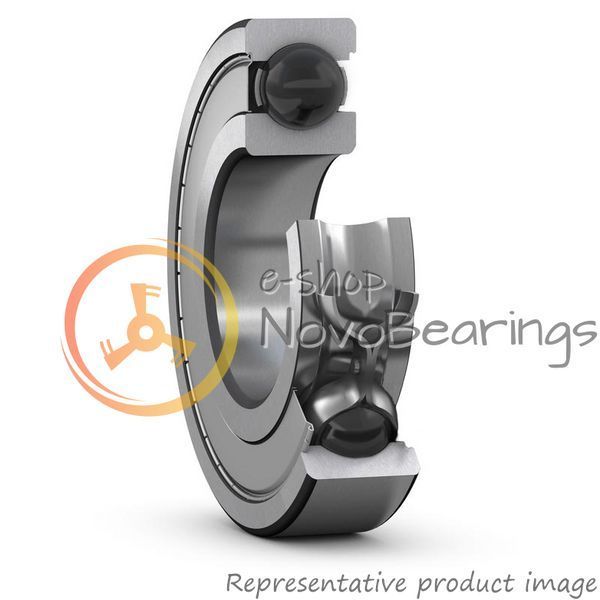

Picture for illustration purposes only, product may differ from image. See technical specification for details.
