Tapered 1:12 bore type for 3.543 in. / 90 mm. shaft diametr, outer ring surface is cylindrical.
Easy to mount, made of hardened carbon chromium bearing steel.
Principal dimensions is 3.543х6.299х1.575 in. equal to 90х160х40 mm.
The tapered bore facilitates ease of mounting via adapter/withdrawal sleeves.
Open type bearing without sealing. Require little maintenance.
Sheet metal cage.
Metric series product.
Double row self-aligning deep groove ball bearings have one common sphered concave raceway in the outer ring and two raceway grooves in the inner ring. They are part of the group of self-aligning bearings.
This type of bearings have excellent high-speed and light load performance, low friction, permit the compensation of static and dynamic angular misalignments, skewing between the inner and outer ring within certain limits. For example self-retaining ball bearings are insensitive to angular misalignment of the shaft relative to the housing, which can be caused with shaft deflection.

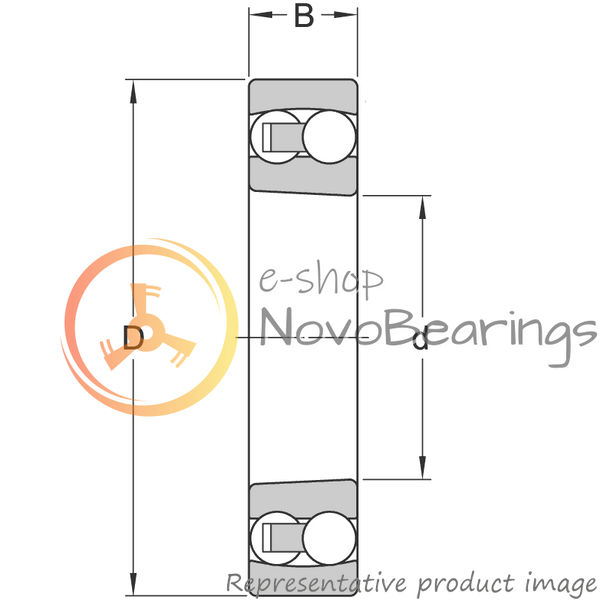

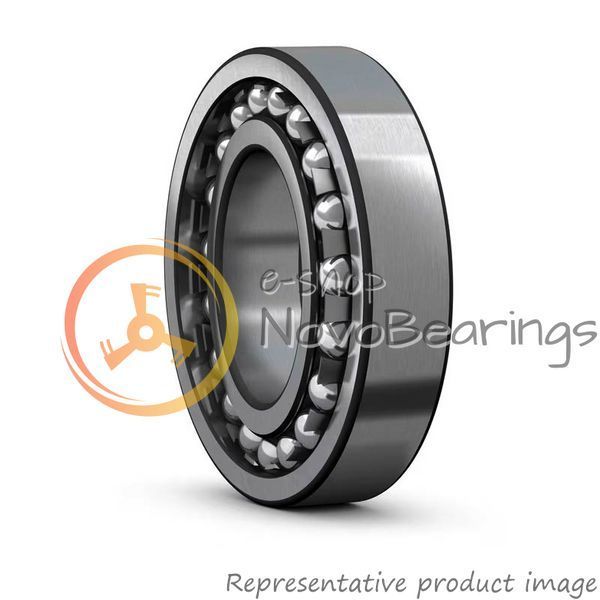

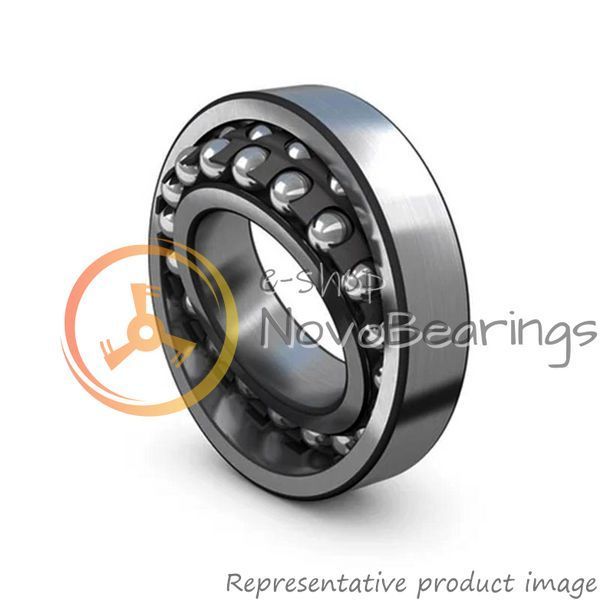

Picture for illustration purposes only, product may differ from image. See technical specification for details.
