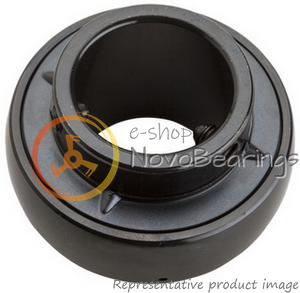

  • UC305D1 NTN Bearing (25х62х38 mm.)
  • UC305D1 NTN Bearing (25х62х38 mm.)
Features
Brand NTN
Designation UC305D1

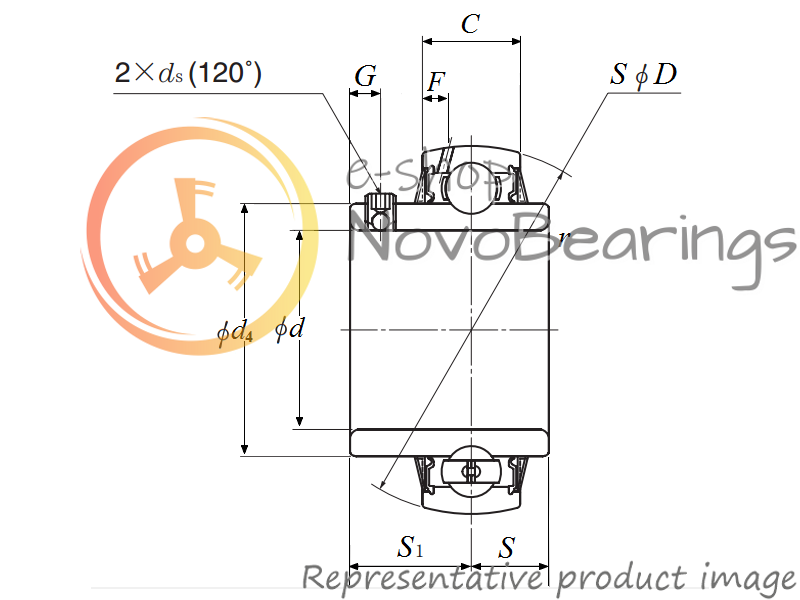

Dimensions [d x D x W] 25х62х38 mm.
Bore diameter (d) 0.984 in. / 25 mm.
Outside diameter (D) 2.441 in. / 62 mm.
Width (B) 1.496 in. / 38 mm.
OR Width (C) 1.496 in. / 38 mm.
IR Width (B) 0.787 in. / 20 mm.
Weight 0.1633 lbs. / 0.36 kg.
Sealing Seal on both sides
Bearing Material Bearing steel
Cage Sheet metal
Radial internal clearance Normal
Tolerance class Normal
Number of rows 1
Outer ring type Spherical
Bore type Cylindrical
Series Metric
Description

Single row sealed insert ball bearing with a spherical surface of the outer (outer) ring NTN UC305D1 with a wide inner ring, for cylindrical shafts. Mounting to the shaft: locking screw M6x0.75

Limit rotation speed 5400 rpm. Design dynamic load 21.2 kN, design static load 10.9 kN. Operating temperature from -40°C to +120°C
Usually installed in the housing, it is able to compensate for shaft misalignments relative to the bearing housing due to the spherical design of the outer ring. Bearings of this design are often called self-aligning.
