  • SC04A55JRLLB/2AS NTN Bearing (21.3х35х7 mm.)
  • SC04A55JRLLB/2AS NTN Bearing (21.3х35х7 mm.)
  • SC04A55JRLLB/2AS NTN Bearing (21.3х35х7 mm.)
Features
Brand NTN
Designation SC04A55JRLLB/2AS

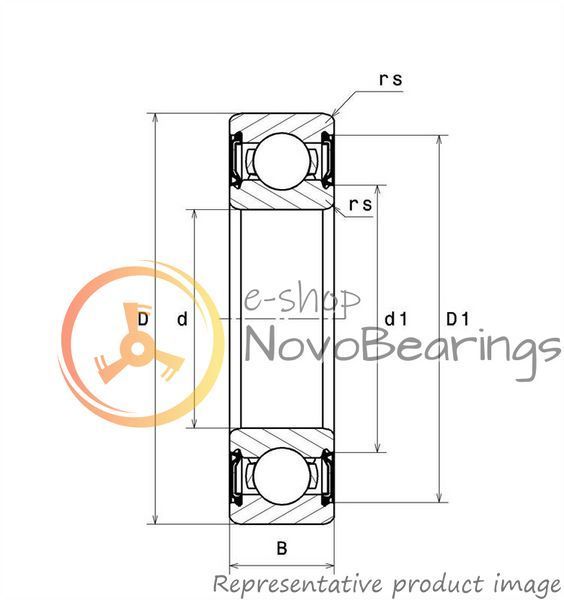

Dimensions [d x D x W] 0.839х1.378х0.276 in.
Bore diameter (d) 0.839 in. / 21.3 mm.
Outside diameter (D) 1.378 in. / 35 mm.
Width (B) 0.276 in. / 7 mm.
Weight 0.0113 lbs. / 0.025 kg.
Sealing Seal on both sides
Bearing Material Bearing steel
Cage Sheet metal
Radial internal clearance Normal
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical
Bore type Cylindrical
Series Inch
Description

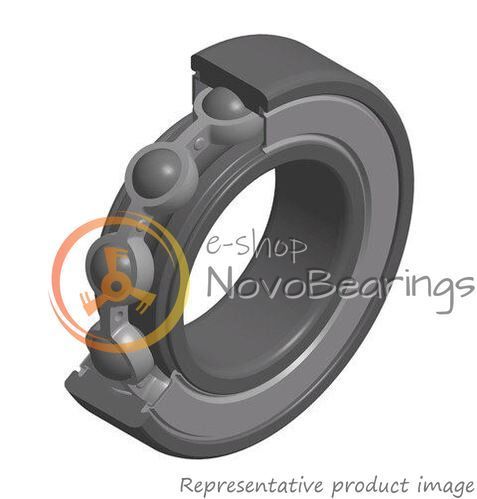

Single row sealed deep groove ball bearing NTN SC04A55JRLLB/2AS.

Limit rotation speed 20,000 rpm. Rated dynamic load 7.55 kN, rated static load 3.35 kN.
Low friction anti-friction nitrile seal. The bearing is lubricated by the manufacturer and does not require re-lubrication throughout its service life.
