  • RNA2208XLL/3AS NTN Bearing (48х80х22.7 mm.)
  • RNA2208XLL/3AS NTN Bearing (48х80х22.7 mm.)
Features

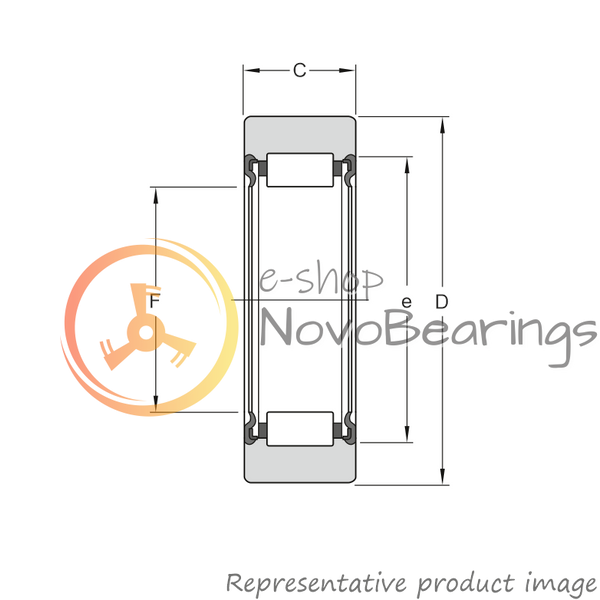

Bore diameter (d) 1.89 in. / 48 mm.
Outside diameter (D) 3.15 in. / 80 mm.
Width (B) 0.894 in. / 22.7 mm.
OR Width (C) 0.894 in. / 22.7 mm.
Series Metric
Dimensions [d x D x W] 48х80х22.7 mm.
Weight 0.2477 lbs. / 0.546 kg.
Number of rows 1
Sealing Seal on both sides
Radial internal clearance Greater than Normal
Tolerance class Normal
Bore type Cylindrical
Outer ring type Spherical
Bearing Material Bearing steel
Cage Sheet metal
Description

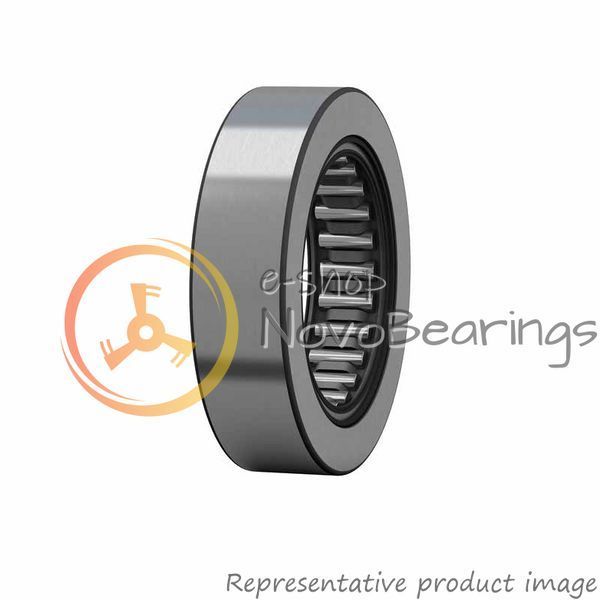

Single-row closed support roller (roller) with a cylindrical surface of the outer (outer) ring NTN RNA2208XLL/3AS for cylindrical shafts.
Roller dimensions 48*80*22.7 mm.
The roller is made on the basis of a needle roller bearing without an inner ring, with contact seals on both sides. Thick-walled outer ring with cylindrical running surface for use with all types of tracks, for use in conveyor systems and cam drives.

Rated dynamic load 28.4 kN, rated static load 55 kN.
Outer ring width : 22.7 mm.
The design of the roller allows the inner ring to be installed separately from the outer ring with the rolling elements.
