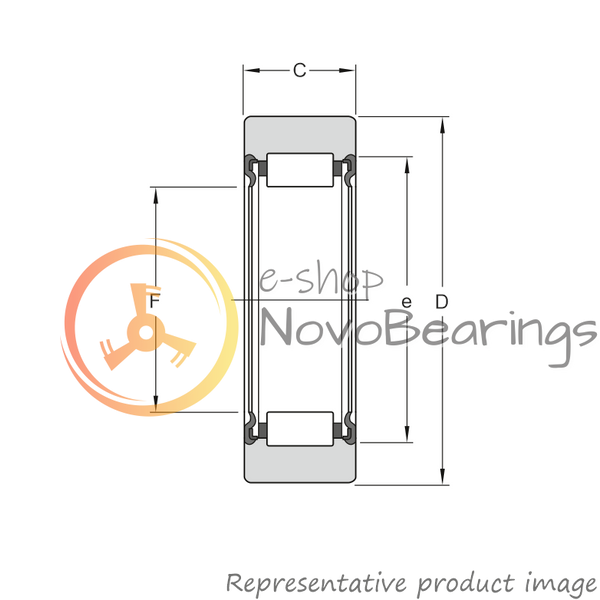

  • RNA2205XLL/3AS NTN Bearing (30х52х17.8 mm.)
  • RNA2205XLL/3AS NTN Bearing (30х52х17.8 mm.)
Features
Bore diameter (d) 1.181 in. / 30 mm.
Outside diameter (D) 2.047 in. / 52 mm.
Width (B) 0.701 in. / 17.8 mm.
OR Width (C) 0.701 in. / 17.8 mm.
Series Metric
Dimensions [d x D x W] 30х52х17.8 mm.
Weight 0.0848 lbs. / 0.187 kg.
Number of rows 2
Sealing Seal on both sides
Radial internal clearance Greater than Normal
Tolerance class Normal
Bore type Cylindrical
Outer ring type Spherical
Bearing Material Bearing steel
Cage Sheet metal
Description

Double-row closed support roller (roller) with a cylindrical surface of the outer (outer) ring NTN RNA2205XLL/3AS for cylindrical shafts.
Roller dimensions 30*52*17.8 mm.
The roller is made on the basis of a needle roller bearing without an inner ring, with contact seals on both sides. Thick wall outer ring with cylindrical running surface for use with all types of tracks, conveyor systems and cam drives.

Rated dynamic load 17.9 kN, rated static load 25.9 kN.
Width outer ring: 17.8 mm.
The design of the roller allows the inner ring to be installed separately from the outer ring with the rolling elements.

A new review or comment
Sign in with
Rate this item
Share

RNA2205XLL/3AS NTN Bearing (30х52х17.8 mm.)

Out of stock
SKU: RNA2205XLL/3ASNTN30X52X18!#_
Price upon request
