  • RNA2200LL/3AS NTN Bearing (14х30х13.8 mm.)
  • RNA2200LL/3AS NTN Bearing (14х30х13.8 mm.)
Features
Bore diameter (d) 0.551 in. / 14 mm.
Outside diameter (D) 1.181 in. / 30 mm.
Width (B) 0.543 in. / 13.8 mm.
OR Width (C) 0.543 in. / 13.8 mm.
Series Metric
Dimensions [d x D x W] 14х30х13.8 mm.
Weight 0.0249 lbs. / 0.055 kg.
Number of rows 2
Sealing Seal on both sides
Radial internal clearance Greater than Normal
Tolerance class Normal
Bore type Cylindrical
Outer ring type Spherical
Bearing Material Bearing steel
Cage Sheet metal
Description

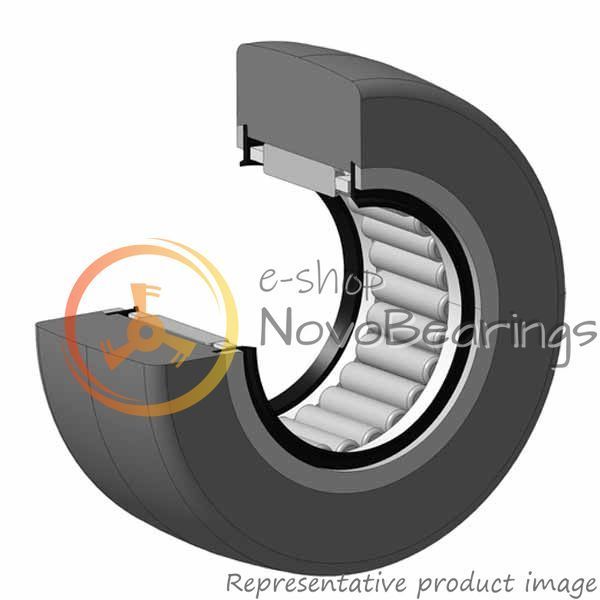

Double-row closed support roller (roller) with a spherical surface of the outer (outer) ring, without an inner ring, NTN RNA2200LL/3AS for cylindrical shafts.
Roller dimensions 14*30*13.8 mm.
The roller is made on the basis of a needle roller bearing without an inner ring, with contact seals on both sides. Thick-walled outer ring with spherical running surface for use with all types of tracks, for use in conveyor systems and cam drives.

Rated dynamic load 7.55 kN, rated static load 9 kN.
Outer ring width : 13.8 mm.
The design of the roller allows the inner ring to be installed separately from the outer ring with the rolling elements.
