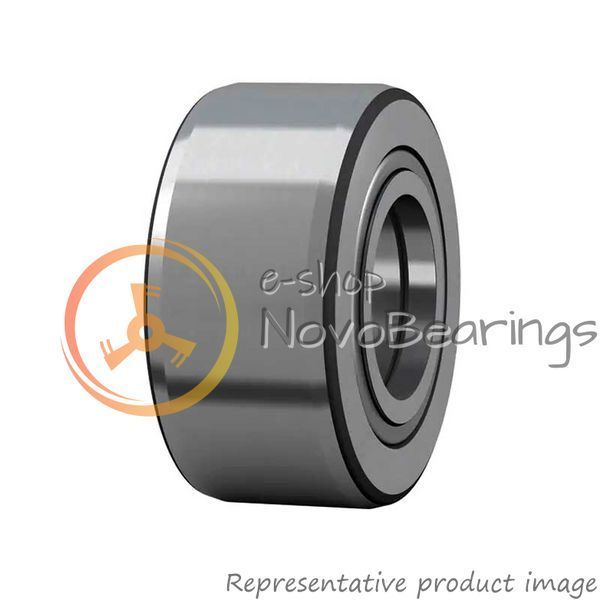

  • NUTR307X/3AS NTN Bearing (35х80х29 mm.)
  • NUTR307X/3AS NTN Bearing (35х80х29 mm.)
  • NUTR307X/3AS NTN Bearing (35х80х29 mm.)
  • NUTR307X/3AS NTN Bearing (35х80х29 mm.)
Features

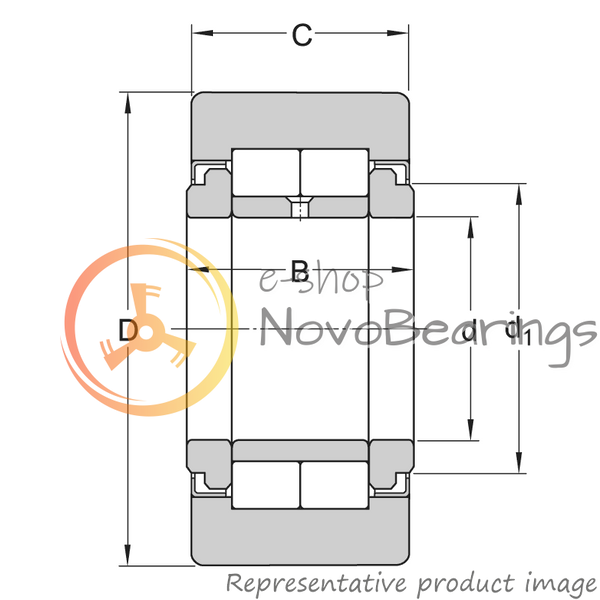

Bore diameter (d) 1.378 in. / 35 mm.
Outside diameter (D) 3.15 in. / 80 mm.
Width (B) 1.142 in. / 29 mm.
OR Width (C) 1.102 in. / 28 mm.
IR Width (B) 1.142 in. / 29 mm.
Series Metric
Dimensions [d x D x W] 35х80х29 mm.
Weight 0.3869 lbs. / 0.853 kg.
Number of rows 2
Sealing Shield on both sides
Radial internal clearance Normal
Tolerance class Normal
Bore type Cylindrical
Outer ring type Cylindrical
Bearing Material Bearing steel
Description

Double-row sealed radial support roller bearing NTN NUTR307X/3AS for cylindrical shafts, with a cylindrical outer surface. Size 35*80*29 mm.

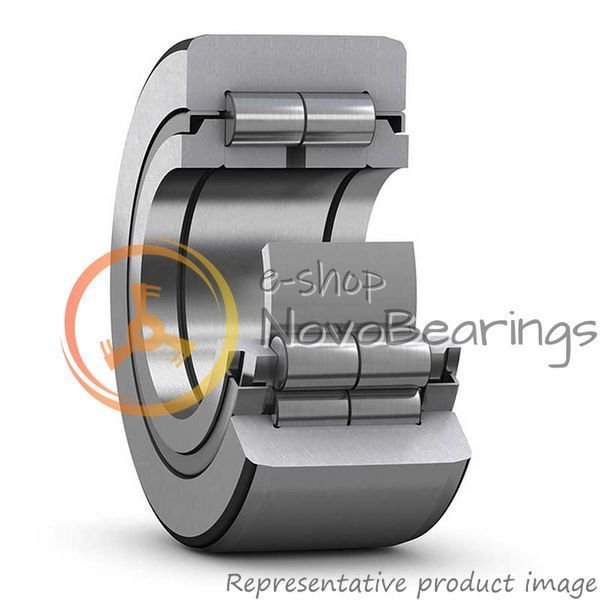

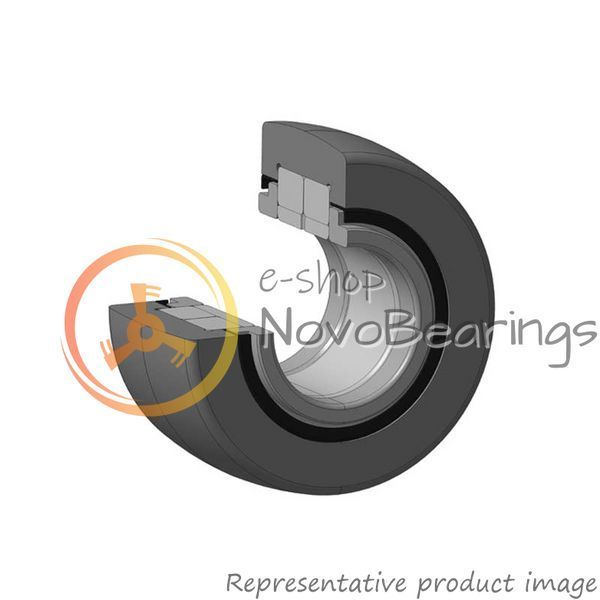

The support roller of this design is made on the basis of a full complement cylindrical roller bearing. Non-removable and durable design without a separator. The thick-walled outer ring with flanges allows it to withstand significant axial loads with less stress from bending or deformation.

Designed dynamic load 62 kN, calculated static load 85.5 kN.
Designed to travel on all types of tracks, for use in cam drives and conveyor systems, to support one-way radial loads.
