  • NUTR204/3AS NTN Bearing (20х47х25 mm.)
  • NUTR204/3AS NTN Bearing (20х47х25 mm.)
  • NUTR204/3AS NTN Bearing (20х47х25 mm.)
  • NUTR204/3AS NTN Bearing (20х47х25 mm.)
Features

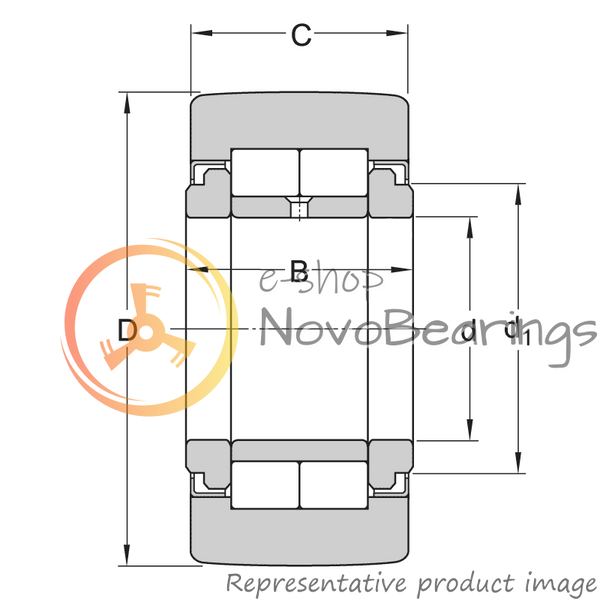

Bore diameter (d) 0.787 in. / 20 mm.
Outside diameter (D) 1.85 in. / 47 mm.
Width (B) 0.984 in. / 25 mm.
OR Width (C) 0.945 in. / 24 mm.
IR Width (B) 0.984 in. / 25 mm.
Series Metric
Dimensions [d x D x W] 20х47х25 mm.
Weight 0.1152 lbs. / 0.254 kg.
Number of rows 2
Sealing Shield on both sides
Radial internal clearance Normal
Tolerance class Normal
Bore type Cylindrical
Outer ring type Spherical
Bearing Material Bearing steel
Description

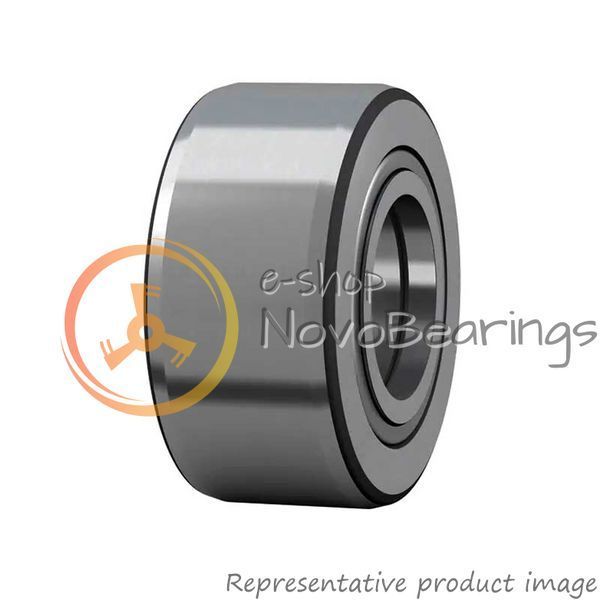

Double-row closed radial support roller bearing NTN NUTR204/3AS for cylindrical shafts, with a spherical outer surface. Size 20*47*25 mm.

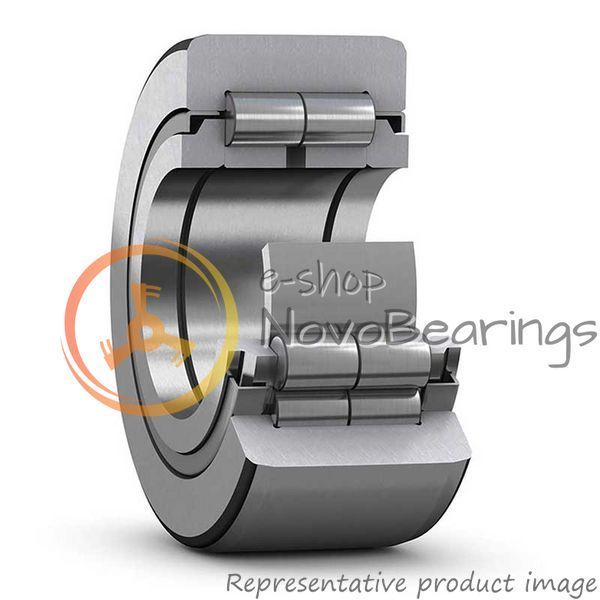

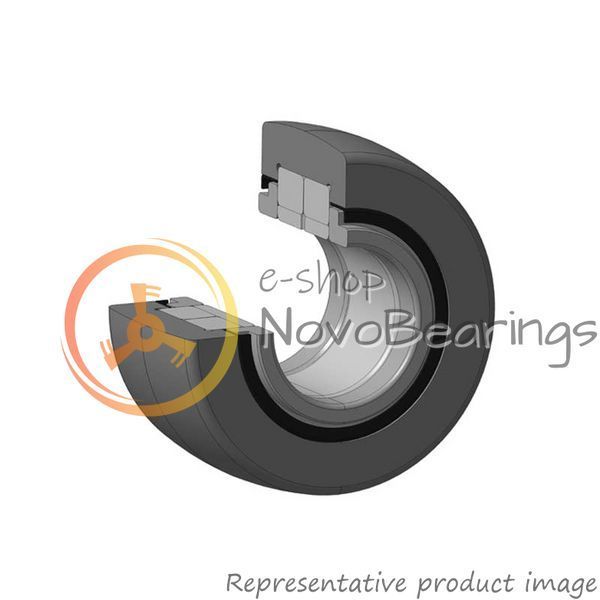

The support roller of this design is made on the basis of a full complement cylindrical roller bearing. Non-removable and durable design without a separator. The thick-walled outer ring with flanges allows it to withstand significant axial loads with less stress from bending or deformation.

Designed dynamic load 38.5 kN, calculated static load 48 kN.
Designed to travel on all types of tracks, for use in cam drives and conveyor systems, to support one-way radial loads.

A new review or comment
Sign in with
Rate this item
Share

NUTR204/3AS NTN Bearing (20х47х25 mm.)

Out of stock
SKU: NUTR204/3ASNTN20X47X25!#_
Price upon request
