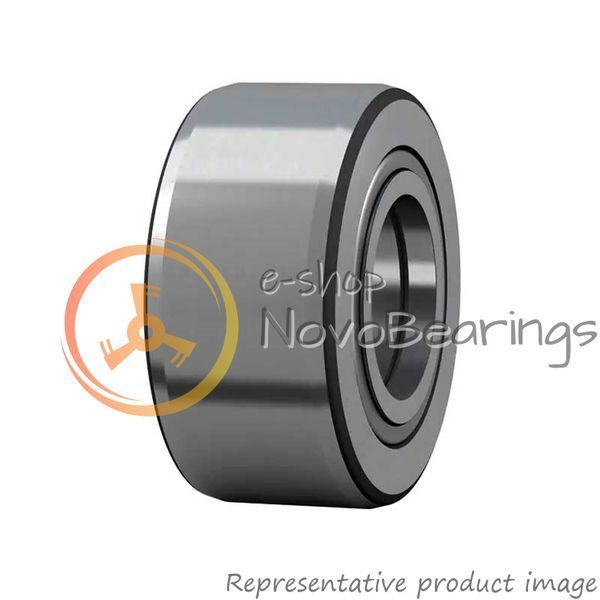

  • NUTR202/3AS NTN Bearing (15х35х19 mm.)
  • NUTR202/3AS NTN Bearing (15х35х19 mm.)
  • NUTR202/3AS NTN Bearing (15х35х19 mm.)
Features

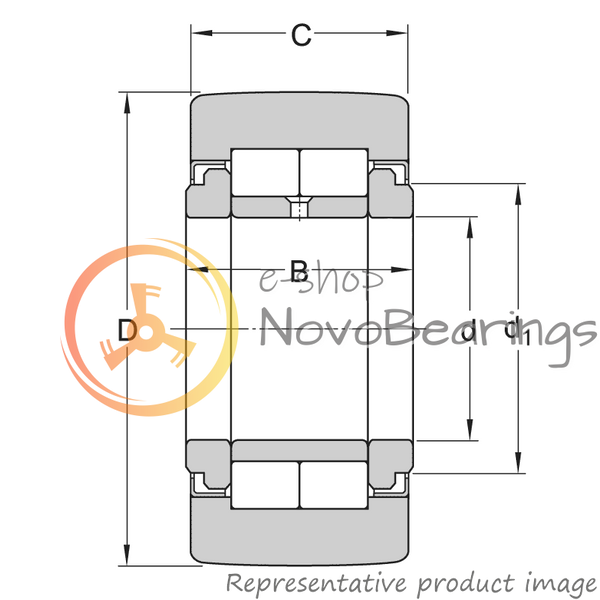

Bore diameter (d) 0.591 in. / 15 mm.
Outside diameter (D) 1.378 in. / 35 mm.
Width (B) 0.748 in. / 19 mm.
OR Width (C) 0.709 in. / 18 mm.
IR Width (B) 0.748 in. / 19 mm.
Series Metric
Dimensions [d x D x W] 15х35х19 mm.
Weight 0.0476 lbs. / 0.105 kg.
Number of rows 2
Sealing Shield on both sides
Radial internal clearance Normal
Tolerance class Normal
Bore type Cylindrical
Outer ring type Spherical
Bearing Material Bearing steel
Description

Double-row sealed radial support roller bearing NTN NUTR202/3AS for cylindrical shafts, with a spherical outer surface. Size 15*35*19 mm.

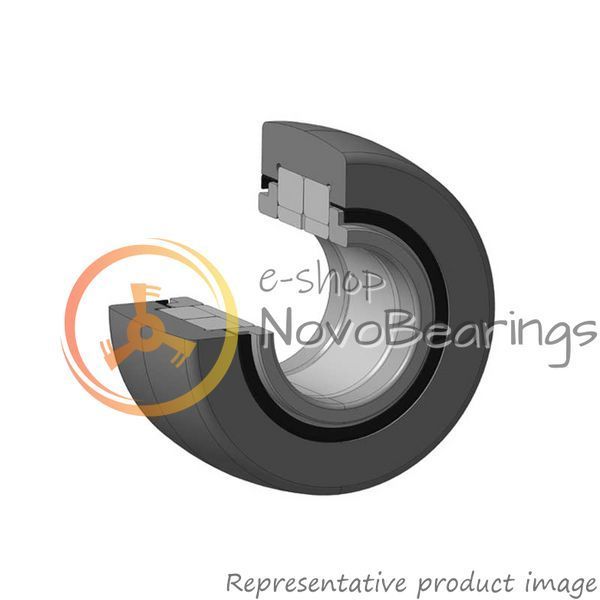

The support roller of this design is made on the basis of a full complement cylindrical roller bearing. Non-removable and durable design without a separator. The thick-walled outer ring with flanges allows it to withstand significant axial loads with less stress from bending or deformation.

Designed dynamic load 22.3 kN, calculated static load 25.7 kN.
Designed to travel on all types of tracks, for use in cam drives and conveyor systems, to carry one-way radial loads.

A new review or comment
Sign in with
Rate this item
Share

NUTR202/3AS NTN Bearing (15х35х19 mm.)

Out of stock
SKU: NUTR202/3ASNTN15X35X19!#_
Price upon request
