  • NUP2210EAT2XC3U NTN Bearing (50х90х23 mm.)
  • NUP2210EAT2XC3U NTN Bearing (50х90х23 mm.)
  • NUP2210EAT2XC3U NTN Bearing (50х90х23 mm.)
Features
Brand NTN
Designation NUP2210EAT2XC3U

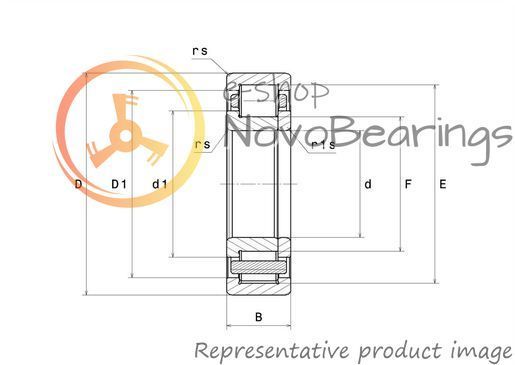

Dimensions [d x D x W] 50х90х23 mm.
Bore diameter (d) 1.969 in. / 50 mm.
Outside diameter (D) 3.543 in. / 90 mm.
Width (B) 0.906 in. / 23 mm.
Weight 0.2649 lbs. / 0.584 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Polymer
Number of rows 1
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

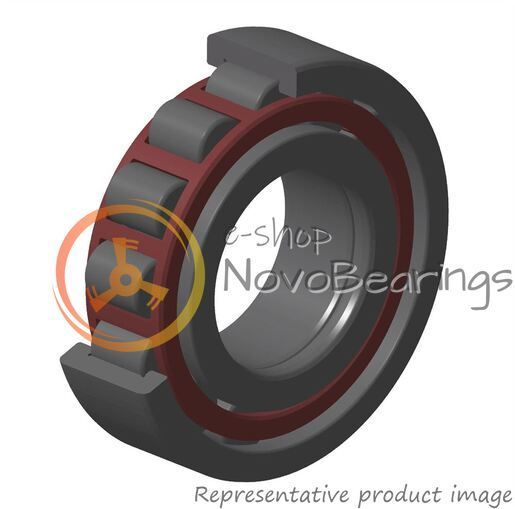

Single row open radial roller bearing NTN NUP2210EAT2XC3U with dimensions 50*90*23 mm.
It has a split design and a cage made of glass-filled polyamide. The outer ring has two guide flanges, the inner ring has one flange and one removable flange in the form of a free ring. Designed to withstand one-sided radial load.

Designed dynamic load 98.5 kN, calculated static load 97 kN. Increased axial clearance (C3).
A roller bearing of this design provides two-way fixation of the shaft, withstands significant axial loads and a relatively high rotation speed. Well suited for use in harsh conditions.

A new review or comment
Sign in with
Rate this item
Share

NUP2210EAT2XC3U NTN Bearing (50х90х23 mm.)

Out of stock
SKU: NUP2210EAT2XC3UNTN50X90X23!#_
Price upon request
