Features
Brand NTN
Designation NU221

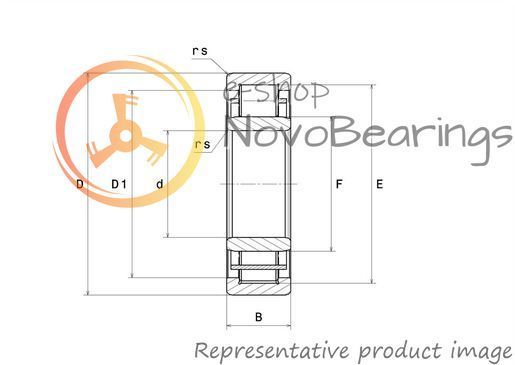

Dimensions [d x D x W] 105х190х36 mm.
Bore diameter (d) 4.134 in. / 105 mm.
Outside diameter (D) 7.48 in. / 190 mm.
Width (B) 1.417 in. / 36 mm.
Weight 1.8847 lbs. / 4.155 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 1
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

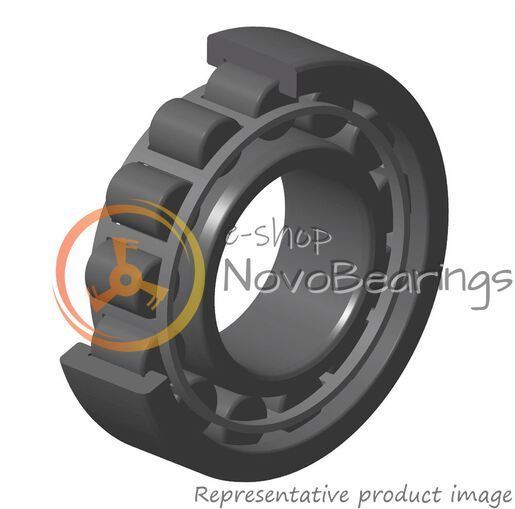

Single row open radial roller bearing NTN NU221 with dimensions 105*190*36 mm.
Has a split design and a pressed steel cage. The outer ring has two guide flanges, the inner ring has no flanges. Designed to withstand one-sided radial load.

Designed dynamic load 223 kN, calculated static load 241 kN. Normal axial clearance.
A roller bearing of this design is capable of accepting axial displacement of the shaft relative to the housing in two directions, withstands significant axial loads and a relatively high rotation speed. Well suited for use in harsh conditions.
