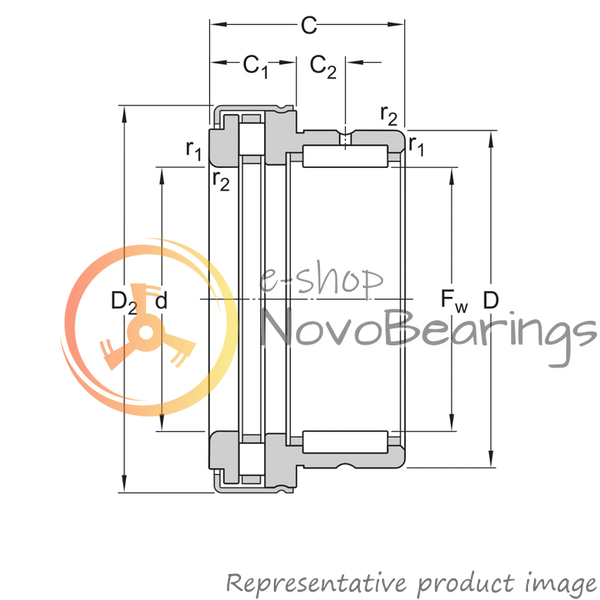

Double-row closed combined bearing without inner ring NTN NKXR35T2Z with dimensions 35*47*30 mm.
This bearing is based on a needle roller bearing and a roller thrust bearing. Simple and robust detachable design, compact dimensions, works well at relatively high speeds, precise positioning of rollers in glass-filled polyamide separator windows. The outer ring has two guide flanges, an annular groove and lubrication holes.

Designed dynamic load 20 kN, calculated static load 36 kN.
The bearing of this design can withstand significant simultaneous axial and radial loads at relatively high rotation speeds. The axial displacement of the shaft is limited by the width of the inner ring raceway. Can be used with an inner ring, which is sold separately.
