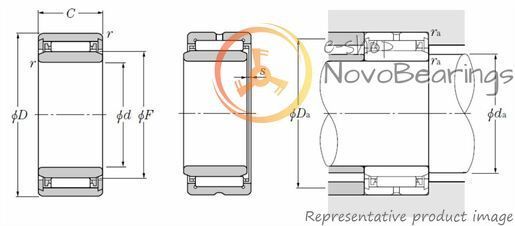

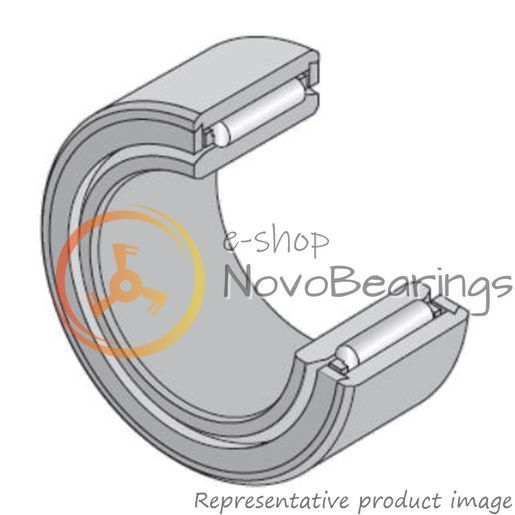

Single-row open radial needle roller bearing with inner ring NTN NK9/12T2+1R6X9X12 dimensions 6*16*12 mm.
Simple and durable split design, precise positioning of rollers in cage windows made of glass-filled polyamide. The machined outer ring has two guide flanges, an annular groove and lubrication holes. The beadless inner ring provides a split design. Designed to withstand one-sided radial load.

Designed dynamic load 4.55 kN, calculated static load 5 kN. Normal axial clearance.
The needle roller bearing of this design can withstand significant axial loads and rotational speeds. The axial displacement of the shaft is limited by the width of the inner ring raceway.
