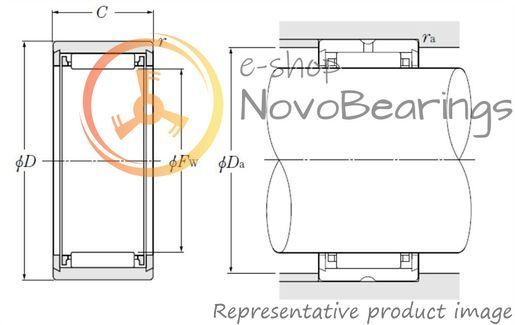

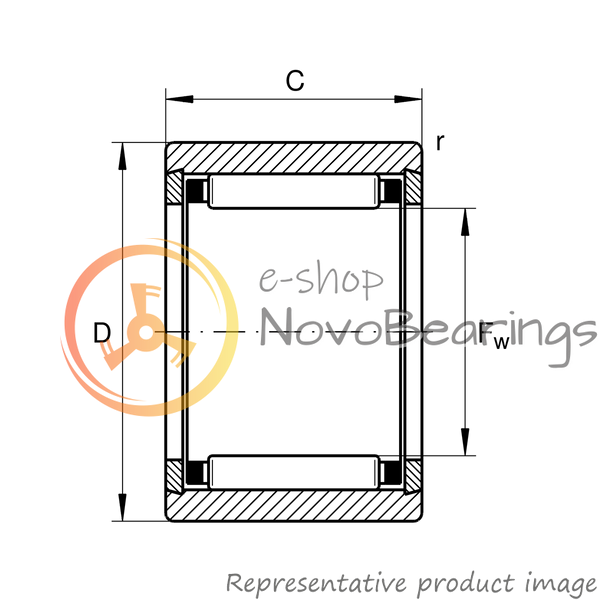

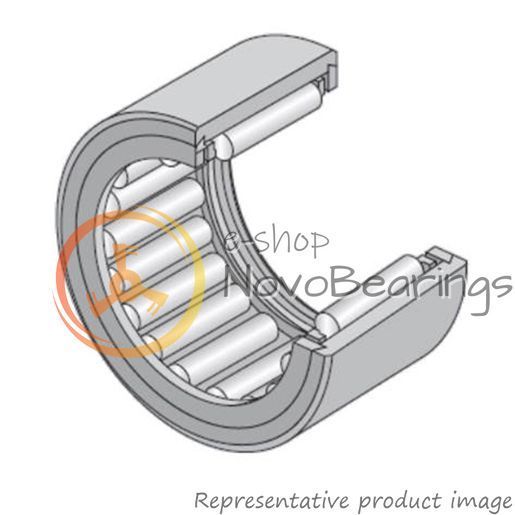

Single row open radial needle roller bearing without inner ring NTN NK20X32X14PX1 with dimensions 20*32*14 mm.
Simple and robust design, precise positioning of rollers in the pressed steel cage windows. The machined outer ring has two guide flanges. There is no inner ring; the raceway is a hardened and ground shaft of the appropriate diameter. Designed to withstand one-sided radial load.

Designed dynamic load 15 kN, calculated static load 22 kN. Normal axial clearance.
The needle roller bearing of this design can withstand significant axial loads and rotational speeds. The axial displacement of the shaft is limited only by the width of the raceway on the shaft.
