Features
Brand NTN
Designation NJ328EG1C3

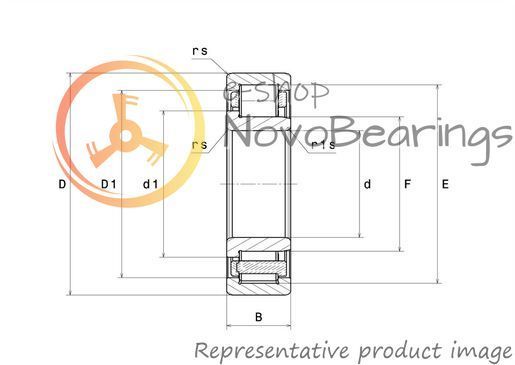

Dimensions [d x D x W] 140х300х62 mm.
Bore diameter (d) 5.512 in. / 140 mm.
Outside diameter (D) 11.811 in. / 300 mm.
Width (B) 2.441 in. / 62 mm.
Weight 10.1378 lbs. / 22.35 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 1
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

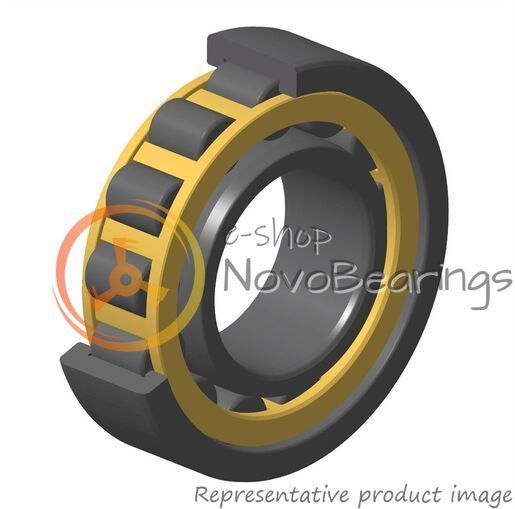

Single-row open radial roller bearing NTN NJ328EG1C3 with dimensions 140*300*62 mm.
It has a split design and a massive brass cage. The outer ring has two guide flanges, the inner ring has one flange. Designed to withstand one-sided radial load.

Designed dynamic load 665 kN, calculated static load 795 kN. Increased axial clearance (C3).
A roller bearing of this design provides one-way fixation of the shaft, can accommodate axial displacement of the shaft relative to the housing in only one direction, and can withstand significant axial loads and relatively high rotation speeds. Well suited for use in harsh conditions.

A new review or comment
Sign in with
Rate this item
Share

NJ328EG1C3 NTN Bearing (140х300х62 mm.)

Out of stock
SKU: NJ328EG1C3NTN140X300X62!#_
Price upon request
