Features
Brand NTN
Designation NJ326

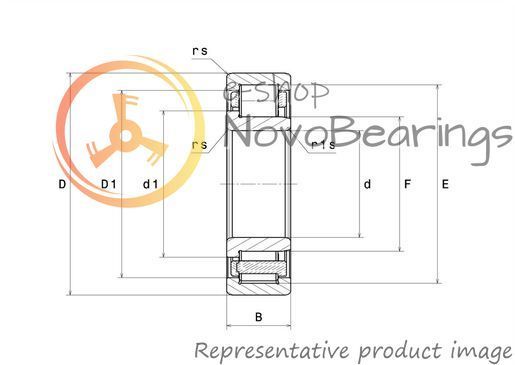

Dimensions [d x D x W] 130х280х58 mm.
Bore diameter (d) 5.118 in. / 130 mm.
Outside diameter (D) 11.024 in. / 280 mm.
Width (B) 2.283 in. / 58 mm.
Weight 8.1148 lbs. / 17.89 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 1
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

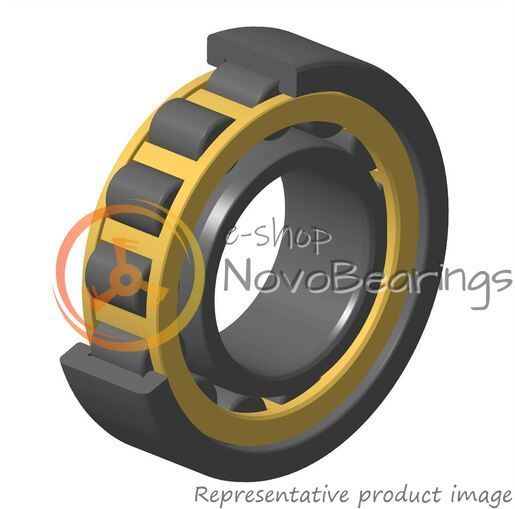

Single-row open radial roller bearing NTN NJ326 with dimensions 130*280*58 mm.
It has a split design and a massive brass cage. The outer ring has two guide flanges, the inner ring has one flange. Designed to withstand one-sided radial load.

Calculated dynamic load 620 kN, calculated static load 665 kN. Normal axial clearance.
A roller bearing of this design provides one-way fixation of the shaft, can accommodate axial displacement of the shaft relative to the housing in only one direction, and can withstand significant axial loads and relatively high rotation speeds. Well suited for use in harsh conditions.

A new review or comment
Sign in with
Rate this item
Share

NJ326 NTN Bearing (130х280х58 mm.)

Out of stock
SKU: NJ326NTN130X280X58!#_
Price upon request
