Features
Brand NTN
Designation NJ2230G1

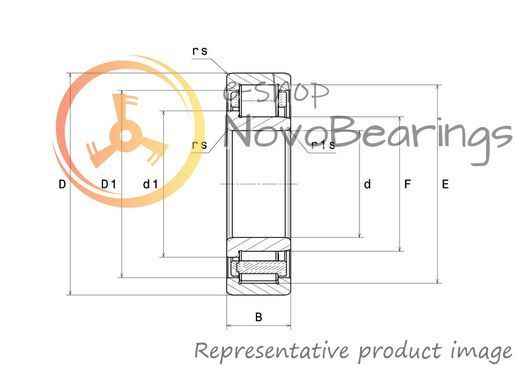

Dimensions [d x D x W] 150х270х73 mm.
Bore diameter (d) 5.906 in. / 150 mm.
Outside diameter (D) 10.63 in. / 270 mm.
Width (B) 2.874 in. / 73 mm.
Weight 8.709 lbs. / 19.2 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 1
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

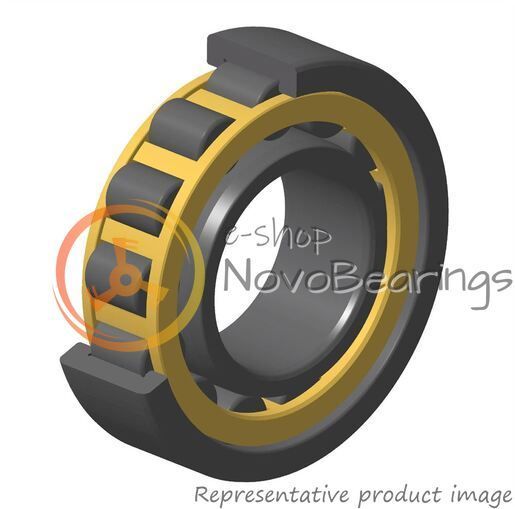

Single-row open radial roller bearing NTN NJ2230G1 with dimensions 150*270*73 mm.
It has a split design and a massive brass cage. The outer ring has two guide flanges, the inner ring has one flange. Designed to withstand one-sided radial load.

Designed dynamic load 500 kN, calculated static load 710 kN. Normal axial clearance.
A roller bearing of this design provides one-way fixation of the shaft, can accommodate axial displacement of the shaft relative to the housing in only one direction, and can withstand significant axial loads and relatively high rotation speeds. Well suited for use in harsh conditions.
