Features
Brand NTN
Designation NJ214

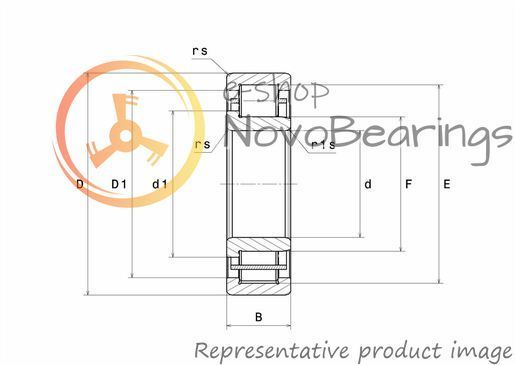

Dimensions [d x D x W] 70х125х24 mm.
Bore diameter (d) 2.756 in. / 70 mm.
Outside diameter (D) 4.921 in. / 125 mm.
Width (B) 0.945 in. / 24 mm.
Weight 0.542 lbs. / 1.195 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 1
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

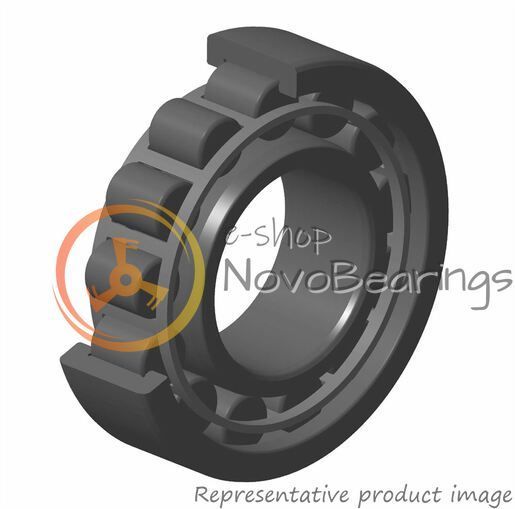

Single row open radial roller bearing NTN NJ214 with dimensions 70*125*24 mm.
Has a split design and a pressed steel cage. The outer ring has two guide flanges, the inner ring has one flange. Designed to withstand one-sided radial load.

Designed dynamic load 92.5 kN, calculated static load 95 kN. Normal axial clearance.
A roller bearing of this design provides one-way fixation of the shaft, can accommodate axial displacement of the shaft relative to the housing in only one direction, and can withstand significant axial loads and relatively high rotation speeds. Well suited for use in harsh conditions.

A new review or comment
Sign in with
Rate this item
Share

NJ214 NTN Bearing (70х125х24 mm.)

Out of stock
SKU: NJ214NTN70X125X24!#_
Price upon request
