Features
Brand NTN
Designation N210

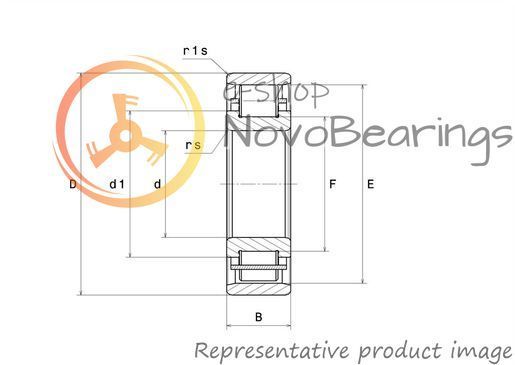

Dimensions [d x D x W] 50х90х20 mm.
Bore diameter (d) 1.969 in. / 50 mm.
Outside diameter (D) 3.543 in. / 90 mm.
Width (B) 0.787 in. / 20 mm.
Weight 0.2268 lbs. / 0.5 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 1
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

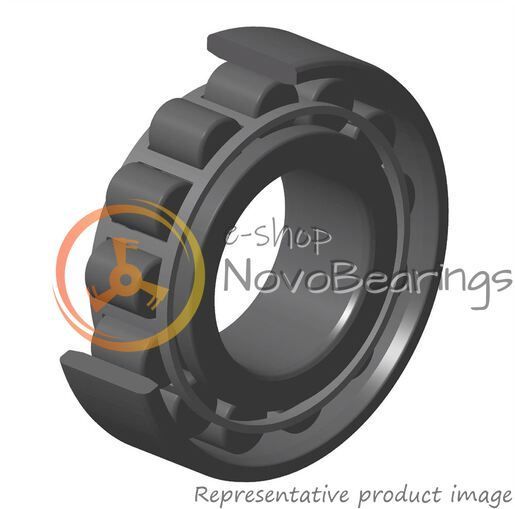

Single-row open radial roller bearing NTN N210 with dimensions 50*90*20 mm.
Has a split design and a pressed steel cage. The inner ring has two guide flanges, the outer ring has no flanges. Designed to withstand one-sided radial load.

Designed dynamic load 53.5 kN, calculated static load 51 kN. Normal axial clearance.
A roller bearing of this design is capable of accepting axial displacement of the shaft relative to the housing in two directions, withstands significant axial loads and a relatively high rotation speed. Well suited for use in harsh conditions.
