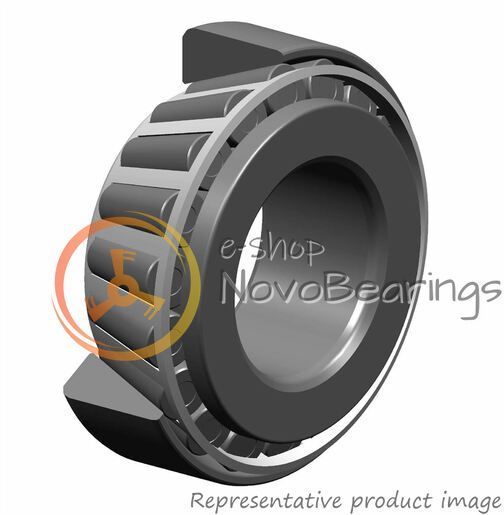

Single row open tapered roller bearing NTN CR-6016PX2V7U35K for cylindrical shafts.
Special series for heavy industrial solutions.
Rated dynamic load 400 kN, calculated static load 825 kN. Manufacturer's recommended temperature of use is from -40 °C to 120 °C

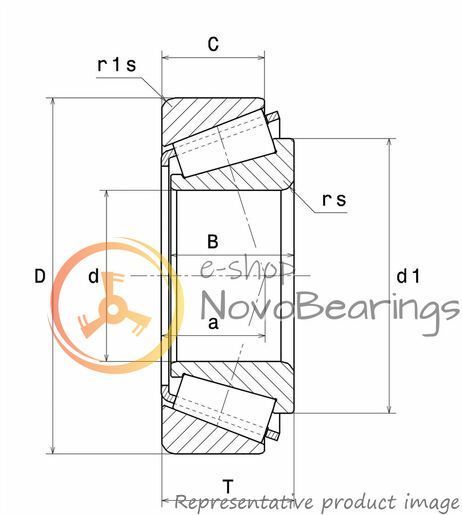

Outer ring width (C): 28 mm.
Inner ring width (B): 38 mm.
Total width of the bearing assembly (T): 38 mm.
Capable of supporting axial and radial loads like an angular contact bearing. The split design of tapered roller bearings allows the inner ring with rollers and cage to be installed separately from the outer (outer) ring. Often installed in pairs in a back-to-back pattern. or mirrored.
