Features
Brand NTN
Designation AXK1103

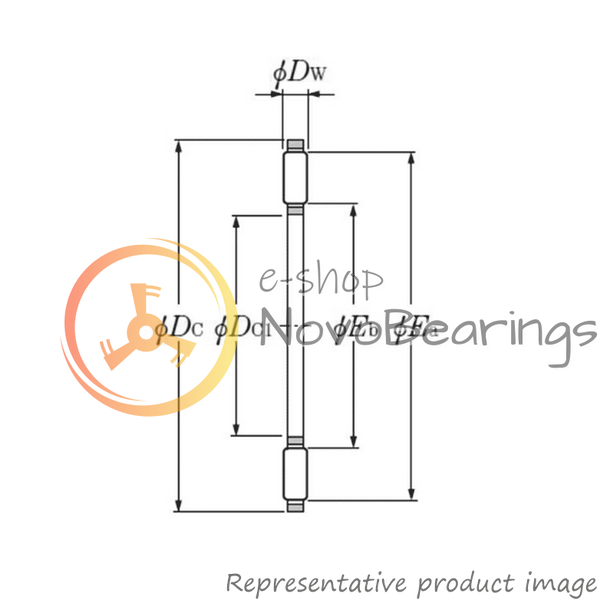

Dimensions [d x D x W] 17х30х2 mm.
Bore diameter (d) 0.669 in. / 17 mm.
Outside diameter (D) 1.181 in. / 30 mm.
Width (B) 0.079 in. / 2 mm.
Weight 0.0127 lbs. / 0.028 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 1
Series Metric
Description

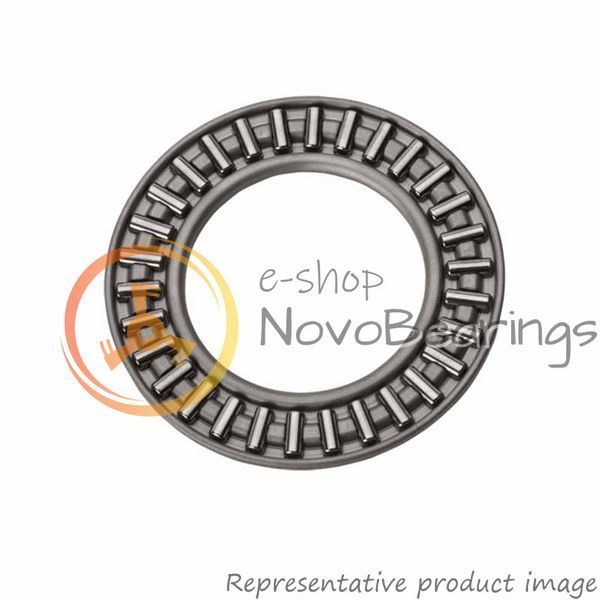

Rolling bodies with cage NTN AXK1103 internal part of a single-row roller (needle) support bearing. Used with support rings (washers) of the support roller/needle bearing, which are selected and supplied separately.

Rated dynamic load 11.9 kN, calculated static load 39.5 kN.

Is integral part of a thrust roller (needle) bearing. The rolling elements are made of special bearing steel, in accordance with the technological requirements for the manufacture of bearings.
Can be found with the designation AXK 1730, etc.
