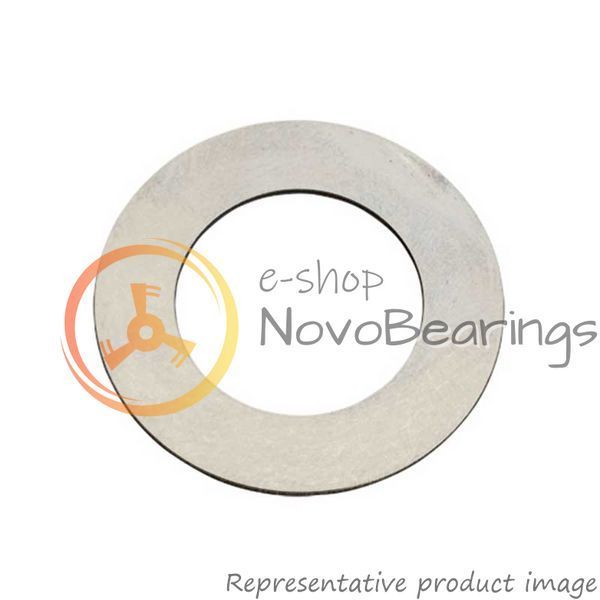

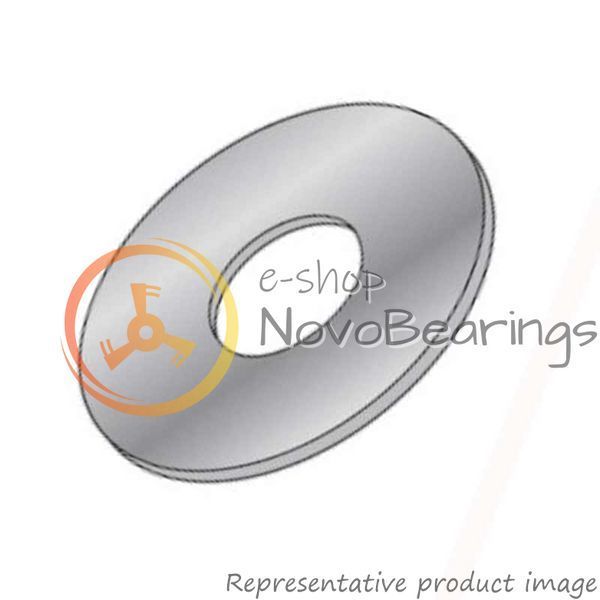

  • AS1118 NTN Bearing (90х120х1 mm.)
  • AS1118 NTN Bearing (90х120х1 mm.)
  • AS1118 NTN Bearing (90х120х1 mm.)
  • AS1118 NTN Bearing (90х120х1 mm.)
Features
Brand NTN
Designation AS1118
Dimensions [d x D x W] 90х120х1 mm.
Bore diameter (d) 3.543 in. / 90 mm.
Outside diameter (D) 4.724 in. / 120 mm.
Width (B) 0.039 in. / 1 mm.
Weight 0.0299 lbs. / 0.066 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Number of rows 1
Series Metric
Outer ring type Cylindrical
Description

Washer (support ring) NTN AS1118 single-row roller (needle) support bearing. It is used assembled with the internal part of the thrust roller/needle bearing (rolling bodies with a cage), which is selected and supplied separately.
Is an integral part of the thrust roller (needle) bearing. Manufactured from special bearing steel, in accordance with the technological requirements for the manufacture of bearings.
Can be found with the designation AS 90120, etc.

A new review or comment
Sign in with
Rate this item
Share

AS1118 NTN Bearing (90х120х1 mm.)

Out of stock
SKU: AS1118NTN90X120X1!#_
Price upon request
