  • 7MC3-6330L1BC3 NTN Bearing (150х320х65 mm.)
  • 7MC3-6330L1BC3 NTN Bearing (150х320х65 mm.)
  • 7MC3-6330L1BC3 NTN Bearing (150х320х65 mm.)
Features
Brand NTN
Designation 7MC3-6330L1BC3

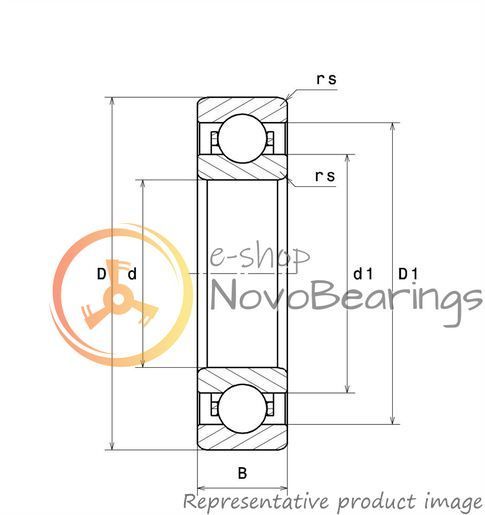

Dimensions [d x D x W] 150х320х65 mm.
Bore diameter (d) 5.906 in. / 150 mm.
Outside diameter (D) 12.598 in. / 320 mm.
Width (B) 2.559 in. / 65 mm.
Weight 9.979 lbs. / 22 kg.
Sealing Without / Open
Bearing Material Bearing steel
Cage Machined brass
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical
Bore type Cylindrical
Series Metric
Description

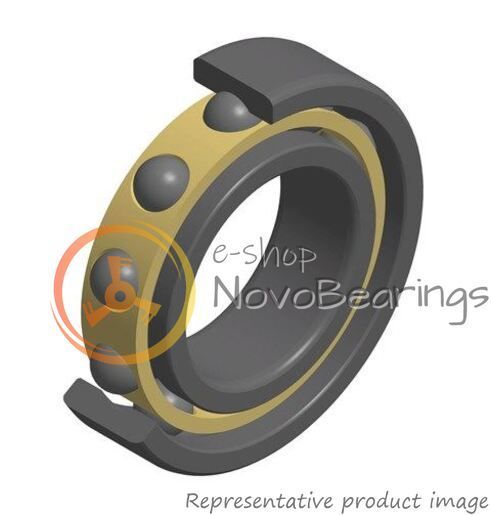

Single row open deep groove ball bearing NTN 7MC3-6330L1BC3 with ceramic coating of the outer ring.
Rated dynamic load 2400 kN, rated static load 305 kN.
Bearing dimensions: 150*320*65 mm.
Increased radial clearance (C3).
The Megaohm® Special Series is designed to prevent arcing and electrical corrosion in a variety of applications. The resistance of the ceramic coating is at least 2000 MOhm / 500 V DC, high voltage resistance up to 3 kV. Excellent for use in traction motors and other components with a high risk of electrical corrosion.
Found with markings/catalog numbers: 6330M/C3VL0241, 6330-M-J20AA-C3, etc.

A new review or comment
Sign in with
Rate this item
Share

7MC3-6330L1BC3 NTN Bearing (150х320х65 mm.)

Out of stock
SKU: 7MC3-6330L1BC3NTN150X320X65!#_
Price upon request
