  • 7MC3-6316L1BC3 NTN Bearing (80х170х39 mm.)
  • 7MC3-6316L1BC3 NTN Bearing (80х170х39 mm.)
  • 7MC3-6316L1BC3 NTN Bearing (80х170х39 mm.)
Features
Brand NTN
Designation 7MC3-6316L1BC3

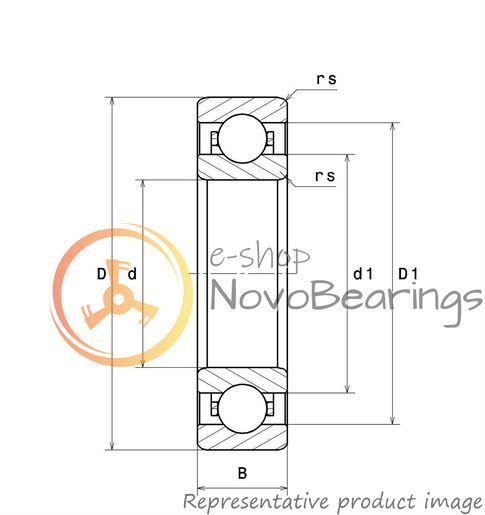

Dimensions [d x D x W] 80х170х39 mm.
Bore diameter (d) 3.15 in. / 80 mm.
Outside diameter (D) 6.693 in. / 170 mm.
Width (B) 1.535 in. / 39 mm.
Weight 2.0094 lbs. / 4.43 kg.
Sealing Without / Open
Bearing Material Bearing steel
Cage Machined brass
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical
Bore type Cylindrical
Series Metric
Description

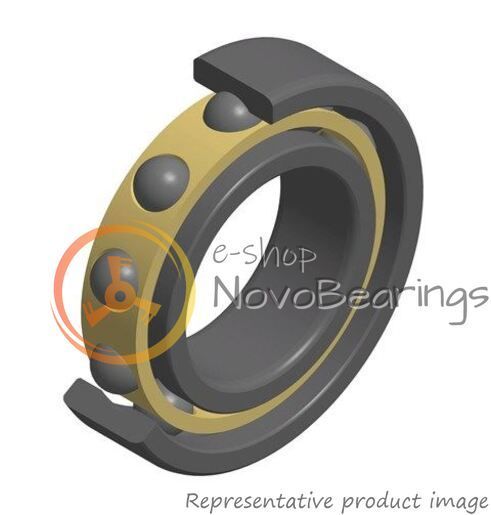

Single row open deep groove ball bearing NTN 7MC3-6316L1BC3 with ceramic coating of the outer ring.
Rated dynamic load 123 kN, rated static load 86.5 kN.
Bearing dimensions: 80*170*39 mm.
Increased radial clearance (C3).
The Megaohm® Special Series is designed to prevent arcing and electrical corrosion in a variety of applications. The resistance of the ceramic coating is at least 2000 MOhm / 500 V DC, high voltage resistance up to 3 kV. Excellent for use in traction motors and other components with a high risk of electrical corrosion.
Found with markings/catalog numbers: 6316M/C3VL0241, 6316-M-J20AA-C3, etc.
