  • 6816C4 NTN Bearing (80х100х10 mm.)
  • 6816C4 NTN Bearing (80х100х10 mm.)
  • 6816C4 NTN Bearing (80х100х10 mm.)
Features
Brand NTN
Designation 6816C4

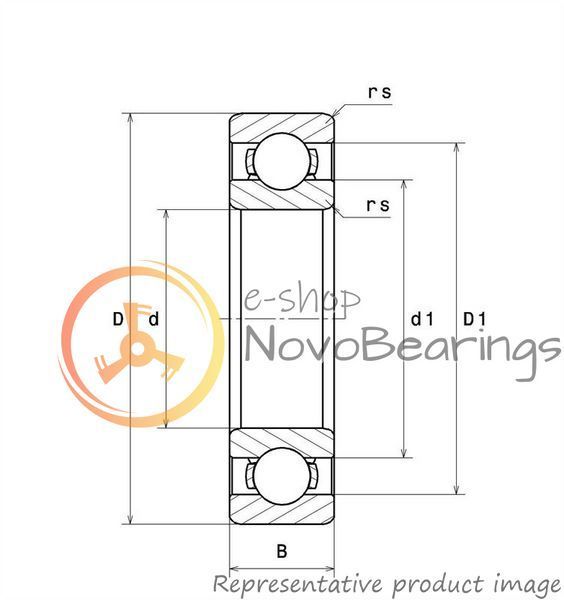

Dimensions [d x D x W] 80х100х10 mm.
Bore diameter (d) 3.15 in. / 80 mm.
Outside diameter (D) 3.937 in. / 100 mm.
Width (B) 0.394 in. / 10 mm.
Weight 0.068 lbs. / 0.15 kg.
Sealing Without / Open
Bearing Material Bearing steel
Cage Sheet metal
Radial internal clearance Greater than C3 (C4)
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical
Bore type Cylindrical
Series Metric
Description

Single row open deep groove ball bearing NTN 6816C4.

Limit rotation speed 6000 rpm. Design dynamic load 14 kN, design static load 13.3 kN.
An analogue of bearing 61816C4 from other manufacturers.
