  • 5302SC3 NTN Bearing (15х42х19 mm.)
  • 5302SC3 NTN Bearing (15х42х19 mm.)
  • 5302SC3 NTN Bearing (15х42х19 mm.)
Features
Brand NTN
Designation 5302SC3
Dimensions [d x D x W] 15х42х19 mm.
Bore diameter (d) 0.591 in. / 15 mm.
Outside diameter (D) 1.654 in. / 42 mm.
Width (B) 0.748 in. / 19 mm.
Weight 0.0499 lbs. / 0.11 kg.
Sealing Without / Open
Number of rows 2
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bore type Cylindrical
Outer ring type Cylindrical
Bearing Material Bearing steel
Cage Polymer
Series Metric
Description

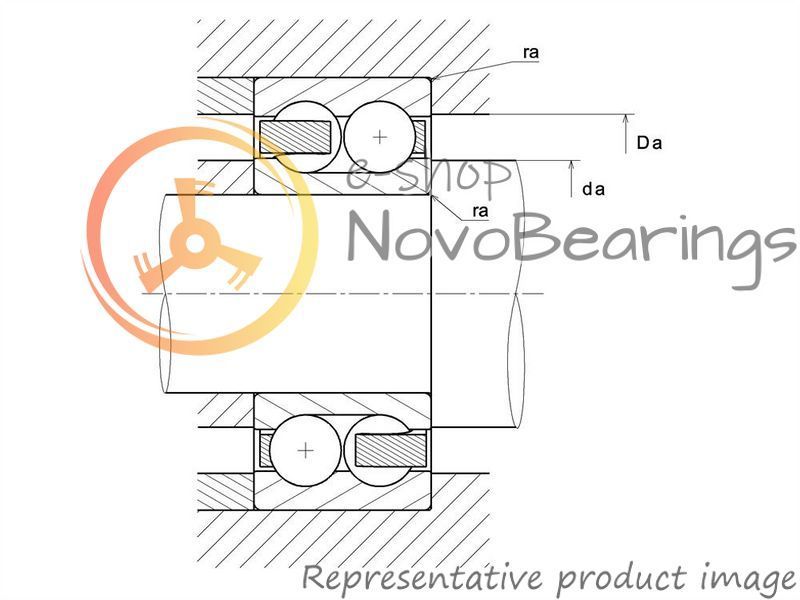

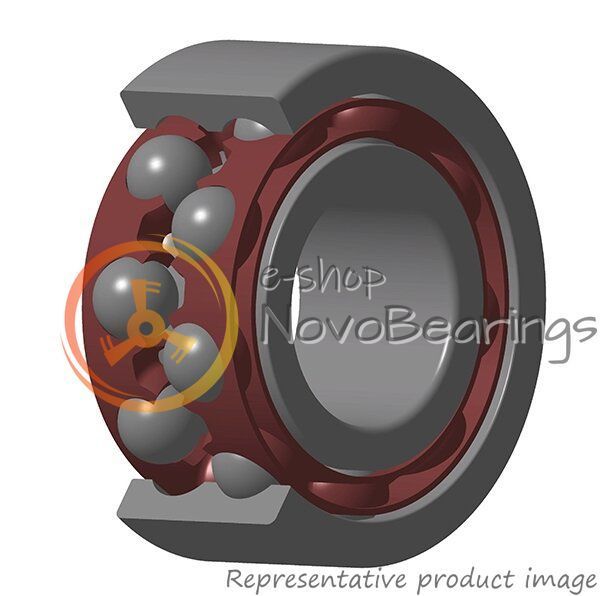

Double-row open angular contact ball bearing NTN 5302SC3 for cylindrical shafts.

The maximum rotation speed is 11000 rpm. Design dynamic load 17.6 kN, design static load 10.2 kN. Contact angle α = 25 °
Slight differences in contact angle allow replacement of 3302 bearings from other manufacturers.
