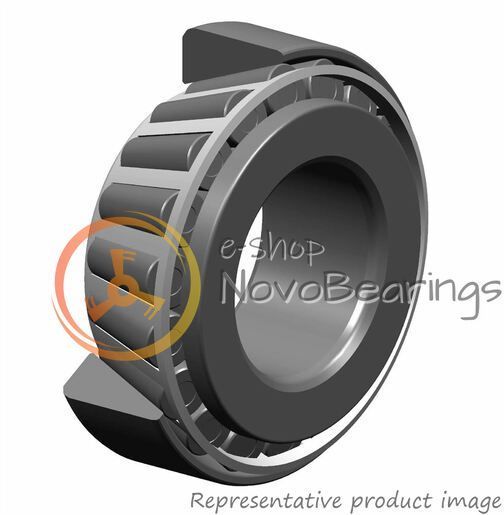

Single row open tapered roller bearing NTN 4T-594/592 for cylindrical shafts. Steel cage, inch size series.

The maximum rotation speed is 2300 rpm. Design dynamic load 279 kN, design static load 2.51 kN. Manufacturer's recommended temperature of use is from -40 °C to 120 °C

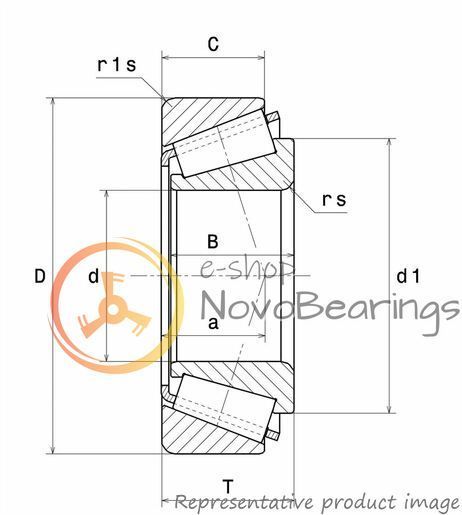

Outer ring width (B): 30.162 mm.
Inner ring width (C): 36.322 mm.
Total width of the bearing assembly (T): 39.688 mm.
Capable of supporting axial and radial loads like an angular contact bearing. The split design of tapered roller bearings allows the inner ring with rollers and cage to be installed separately from the outer (outer) ring. Often installed in pairs in a back-to-back pattern. or mirrored.
Found under catalog numbers: JD9018+JD8248, 594A/2A, 594/592, 594/592A, 503356156, 2W0501319, 8127818, 183704, NP579116/NP022042, SET1138, SET403, VKHB2040, VKT8624, 181298/181128, SET216
