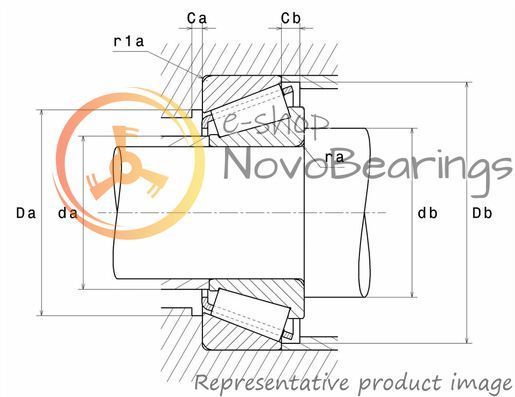

Single row open tapered roller bearing NTN 4T-56426/56650 for cylindrical shafts. Steel cage, inch size series.
Rated dynamic load 191 kN, rated static load 315 kN.
Outer ring width (B): 26.988 mm.
Inner ring width (C): 36.512 mm.
Total width of bearing assembly (T): 36.512 mm.
Capable of supporting axial and radial loads like an angular contact bearing. The split design of tapered roller bearings allows the inner ring with rollers and cage to be installed separately from the outer (outer) ring. Often installed in pairs in a back-to-back or mirrored pattern.
