  • 3314S NTN Bearing (70х150х63.5 mm.)
  • 3314S NTN Bearing (70х150х63.5 mm.)
  • 3314S NTN Bearing (70х150х63.5 mm.)
Features
Brand NTN
Designation 3314S
Dimensions [d x D x W] 70х150х63.5 mm.
Bore diameter (d) 2.756 in. / 70 mm.
Outside diameter (D) 5.906 in. / 150 mm.
Width (B) 2.5 in. / 63.5 mm.
Weight 2.2906 lbs. / 5.05 kg.
Sealing Without / Open
Number of rows 2
Radial internal clearance Normal
Tolerance class Normal
Bore type Cylindrical
Outer ring type Cylindrical
Bearing Material Bearing steel
Cage Polymer
Series Metric
Description

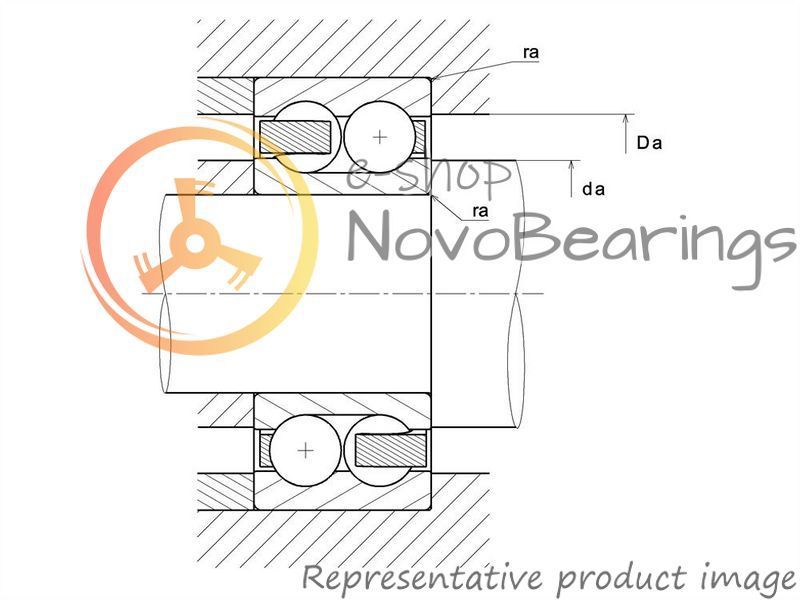

Double-row open angular contact ball bearing NTN 3314S for cylindrical shafts.

Limit rotation speed 4200 rpm. Design dynamic load 128 kN, design static load 151 kN. Contact angle α = 32 °
Slight differences in contact angle allow replacement of 5314 bearings from other manufacturers.
