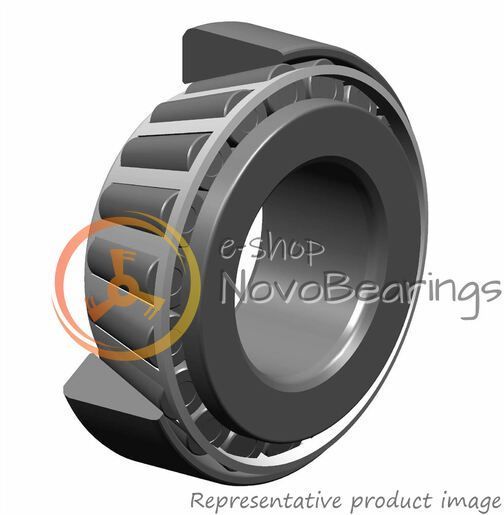

Single row open tapered roller bearing NTN 32972XUE1 for cylindrical shafts. Steel cage, metric size series.
Limit rotation speed 590 rpm. Design dynamic load 2330 kN, design static load 36.6 kN. Manufacturer's recommended operating temperature -40°C to 120°C
Outer ring width (B): 57 mm.
Inner ring width (C): 76 mm.
Overall width bearing assembly (T): 76 mm.
ISO 355 designation: T4FD360

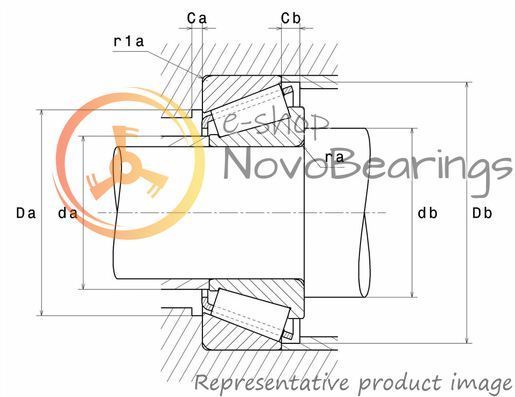

Capable of supporting axial and radial loads as an angular contact bearing. The split design of tapered roller bearings allows the inner ring with rollers and cage to be installed separately from the outer (outer) ring. Often installed in pairs in a back-to-back or mirrored pattern.
