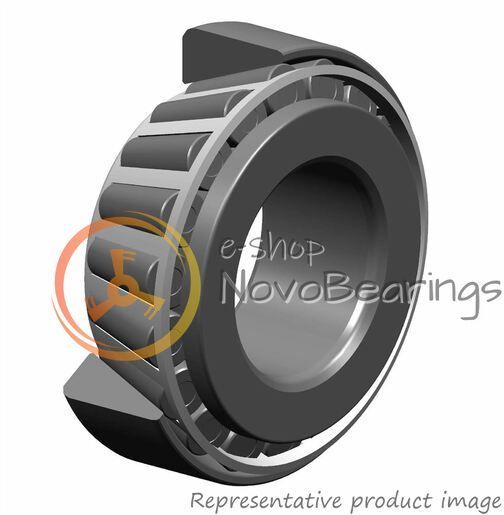

Single row open tapered roller bearing NTN 32064XU for cylindrical shafts. Steel cage, metric size series.
Limit rotation speed 630 rpm. Design dynamic load 2940 kN, design static load 60.2 kN. Manufacturer's recommended operating temperature -40°C to 120°C
Outer ring width (B): 74 mm.
Inner ring width (C): 100 mm.
Overall width bearing assembly (T): 100 mm.
ISO 355 designation: T4GD320
Capable of supporting axial and radial loads as an angular contact bearing. The split design of tapered roller bearings allows the inner ring with rollers and cage to be installed separately from the outer (outer) ring. Often installed in pairs in a back-to-back or mirrored pattern.
