  • 3201S NTN Bearing (12х32х15.9 mm.)
  • 3201S NTN Bearing (12х32х15.9 mm.)
  • 3201S NTN Bearing (12х32х15.9 mm.)
Features
Brand NTN
Designation 3201S

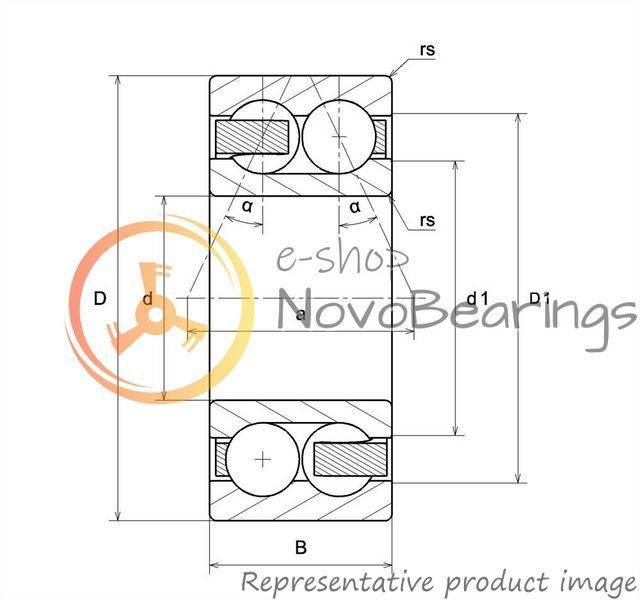

Dimensions [d x D x W] 12х32х15.9 mm.
Bore diameter (d) 0.472 in. / 12 mm.
Outside diameter (D) 1.26 in. / 32 mm.
Width (B) 0.626 in. / 15.9 mm.
Weight 0.0227 lbs. / 0.05 kg.
Sealing Without / Open
Number of rows 2
Radial internal clearance Normal
Tolerance class Normal
Bore type Cylindrical
Outer ring type Cylindrical
Bearing Material Bearing steel
Cage Polymer
Series Metric
Description

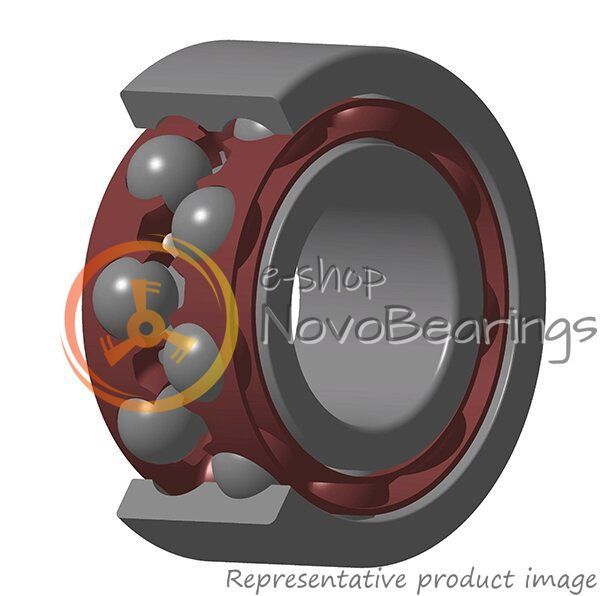

Double-row open angular contact ball bearing NTN 3201S for cylindrical shafts.

Limit rotation speed 13000 rpm. Design dynamic load 8.45 kN, design static load 6.7 kN. Contact angle α = 30 °
Slight differences in the contact angle allow you to replace the 5201 bearing from other manufacturers.
