  • 23948EMD1 NTN Bearing (240х320х60 mm.)
  • 23948EMD1 NTN Bearing (240х320х60 mm.)
  • 23948EMD1 NTN Bearing (240х320х60 mm.)
Features
Brand NTN
Designation 23948EMD1

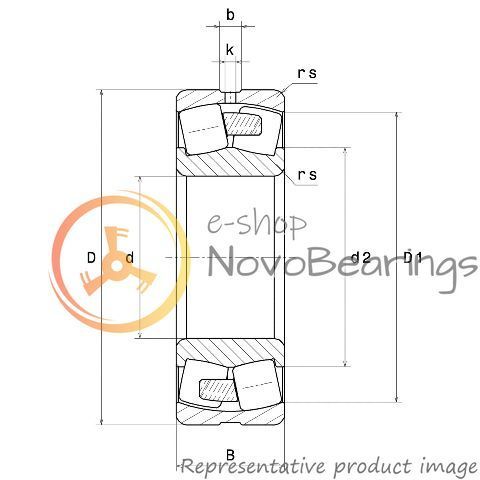

Dimensions [d x D x W] 240х320х60 mm.
Bore diameter (d) 9.449 in. / 240 mm.
Outside diameter (D) 12.598 in. / 320 mm.
Width (B) 2.362 in. / 60 mm.
Weight 6.0691 lbs. / 13.38 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

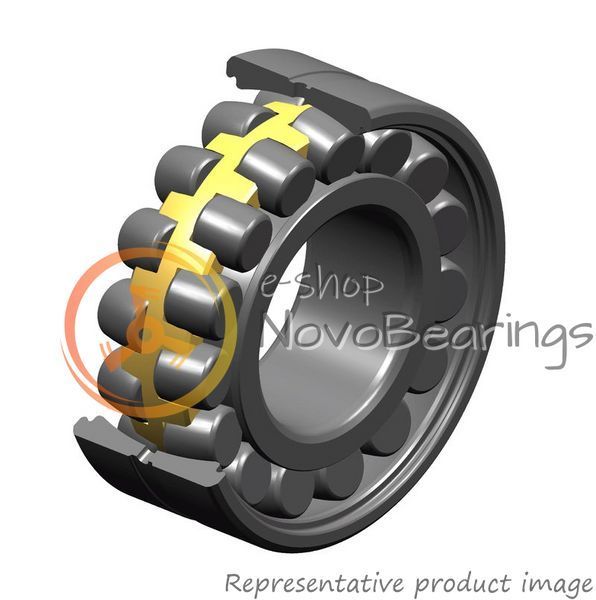

Double row open spherical roller bearing NTN 23948EMD1 for cylindrical shafts, with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of brass. Bearing dimensions: 240*320*60 mm.
Normal radial clearance.

Limit rotation speed 2000 rpm. Design dynamic load 815.003026747 kN, design static load 1350 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

23948EMD1 NTN Bearing (240х320х60 mm.)

Out of stock
SKU: 23948EMD1NTN240X320X60!#_
Price upon request
