  • 23244EMKD1 NTN Bearing (220х400х144 mm.)
  • 23244EMKD1 NTN Bearing (220х400х144 mm.)
  • 23244EMKD1 NTN Bearing (220х400х144 mm.)
Features
Brand NTN
Designation 23244EMKD1
Dimensions [d x D x W] 220х400х144 mm.
Bore diameter (d) 8.661 in. / 220 mm.
Outside diameter (D) 15.748 in. / 400 mm.
Width (B) 5.669 in. / 144 mm.
Weight 37.6482 lbs. / 83 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Tapered 1:12
Outer ring type Cylindrical
Description

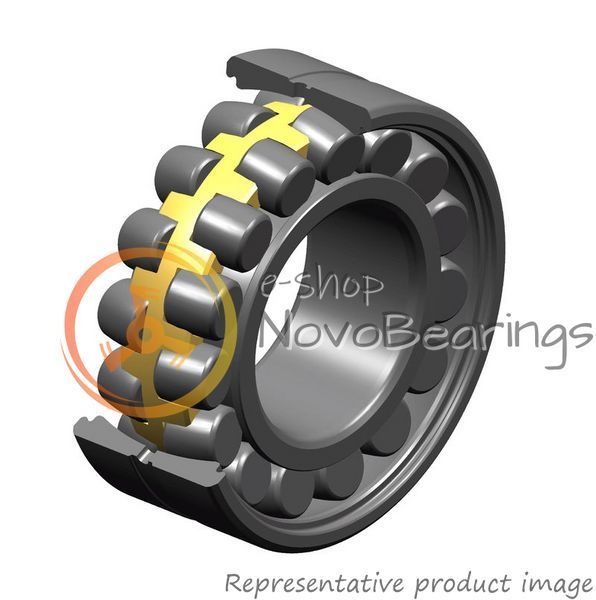

Double-row open spherical roller bearing NTN 23244EMKD1 for tapered shafts (taper 1:12), with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of brass. Bearing dimensions: 220*400*144 mm.
Normal radial clearance.

The maximum rotation speed is 1500 rpm. Design dynamic load 2890 kN, design static load 3830 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

23244EMKD1 NTN Bearing (220х400х144 mm.)

Out of stock
SKU: 23244EMKD1NTN220X400X144!#_
Price upon request
