  • 2319S NTN Bearing (95х200х67 mm.)
  • 2319S NTN Bearing (95х200х67 mm.)
  • 2319S NTN Bearing (95х200х67 mm.)
Features
Brand NTN
Designation 2319S
Number of rows 2

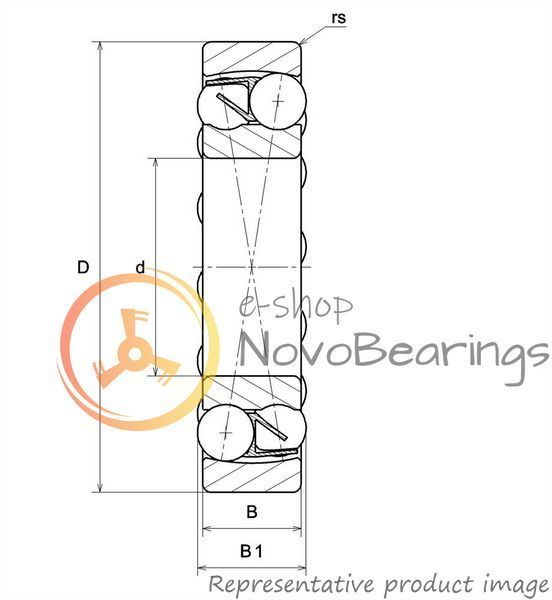

Dimensions [d x D x W] 95х200х67 mm.
Bore diameter (d) 3.74 in. / 95 mm.
Outside diameter (D) 7.874 in. / 200 mm.
Width (B) 2.638 in. / 67 mm.
Radial internal clearance Normal
Bearing Material Bearing steel
Cage Sheet metal
Sealing Without / Open
Bore type Cylindrical
Outer ring type Cylindrical
Tolerance class Normal
Weight 4.0869 lbs. / 9.01 kg.
Description

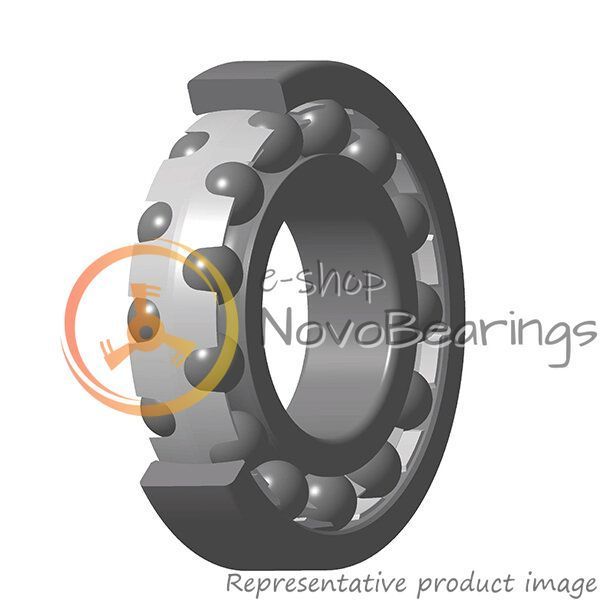

Double-row open self-aligning (self-aligning) spherical deep groove ball bearing NTN 2319S with a stamped steel cage for cylindrical shafts.

The maximum rotation speed is 2800 rpm. Design dynamic load 161 kN, design static load 64.5 kN.
Able to compensate for angular misalignments of the shaft due to the common spherical raceway of the outer ring. Self-centering due to internal design.
