  • 2315SC3 NTN Bearing (75х160х55 mm.)
  • 2315SC3 NTN Bearing (75х160х55 mm.)
  • 2315SC3 NTN Bearing (75х160х55 mm.)
Features
Brand NTN
Designation 2315SC3
Number of rows 2

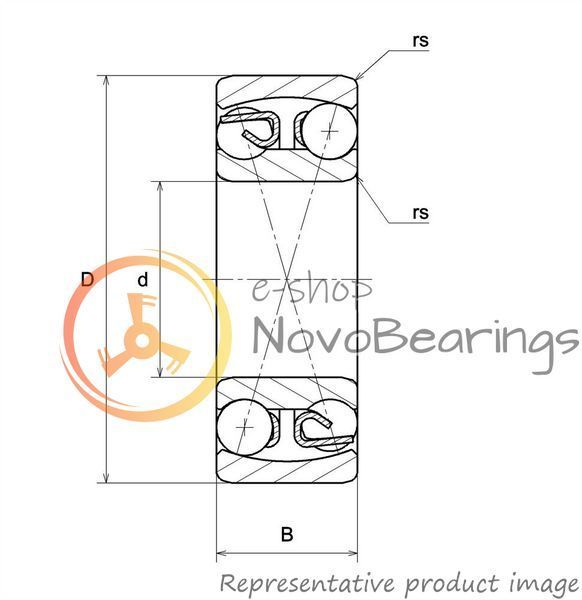

Dimensions [d x D x W] 75х160х55 mm.
Bore diameter (d) 2.953 in. / 75 mm.
Outside diameter (D) 6.299 in. / 160 mm.
Width (B) 2.165 in. / 55 mm.
Radial internal clearance Greater than Normal (C3)
Bearing Material Bearing steel
Cage Sheet metal
Sealing Without / Open
Bore type Cylindrical
Outer ring type Cylindrical
Tolerance class Normal
Weight 2.1636 lbs. / 4.77 kg.
Description

Double-row open self-aligning (self-aligning) spherical deep groove ball bearing NTN 2315SC3 with a stamped steel cage for cylindrical shafts.

The maximum rotation speed is 3400 rpm. Design dynamic load 125 kN, design static load 43 kN.
Able to compensate for angular misalignments of the shaft due to the common spherical raceway of the outer ring. Self-centering due to internal design.

A new review or comment
Sign in with
Rate this item
Share

2315SC3 NTN Bearing (75х160х55 mm.)

Out of stock
SKU: 2315SC3NTN75X160X55!#_
Price upon request
