  • 23034EAKD1 NTN Bearing (170х260х67 mm.)
  • 23034EAKD1 NTN Bearing (170х260х67 mm.)
  • 23034EAKD1 NTN Bearing (170х260х67 mm.)
Features
Brand NTN
Designation 23034EAKD1

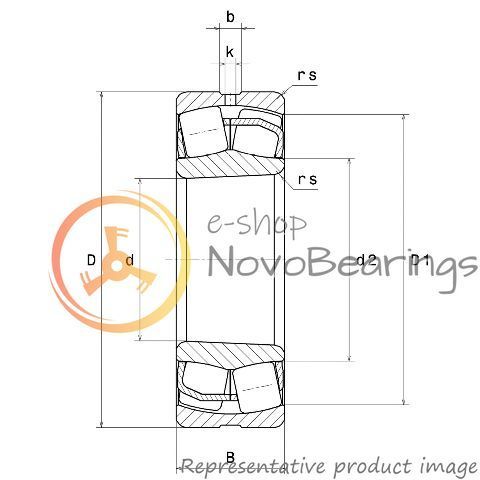

Dimensions [d x D x W] 170х260х67 mm.
Bore diameter (d) 6.693 in. / 170 mm.
Outside diameter (D) 10.236 in. / 260 mm.
Width (B) 2.638 in. / 67 mm.
Weight 5.649 lbs. / 12.454 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Tapered 1:12
Outer ring type Cylindrical
Description

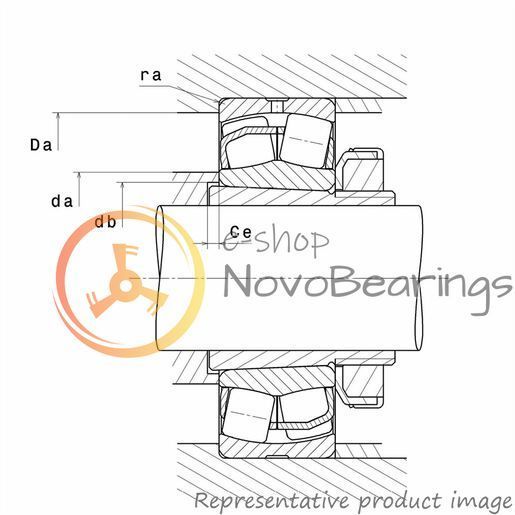

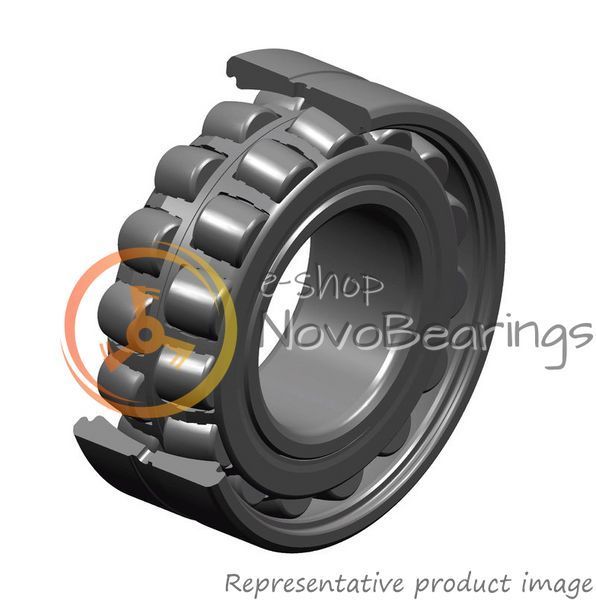

Double-row open spherical roller bearing NTN 23034EAKD1 for tapered shafts (taper 1:12), with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of pressed sheet steel. Bearing dimensions: 170*260*67 mm.
Normal radial clearance.

The maximum rotation speed is 2700 rpm. Design dynamic load 914 kN, design static load 1240 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
