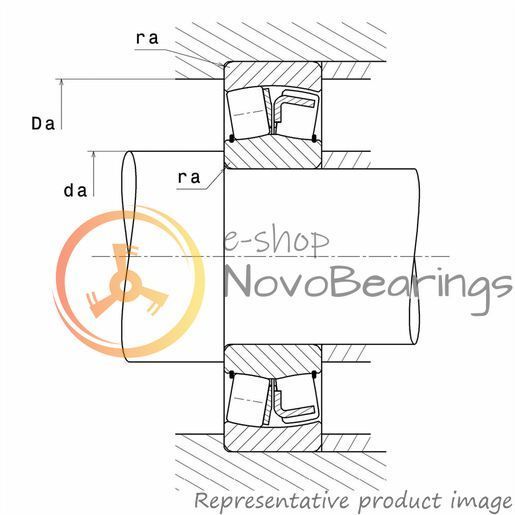

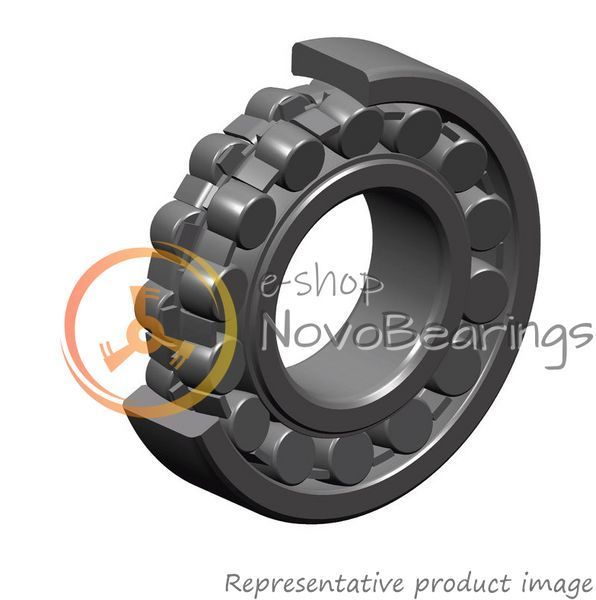

Double-row open spherical roller bearing NTN 23024EAW33 for cylindrical shafts, with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of pressed sheet steel. Bearing dimensions: 120*180*46 mm.
Normal radial clearance.

The maximum rotation speed is 3900 rpm. Design dynamic load 446 kN, design static load 577 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
