  • 22328EAD1C3 NTN Bearing (140х300х102 mm.)
  • 22328EAD1C3 NTN Bearing (140х300х102 mm.)
  • 22328EAD1C3 NTN Bearing (140х300х102 mm.)
Features
Brand NTN
Designation 22328EAD1C3

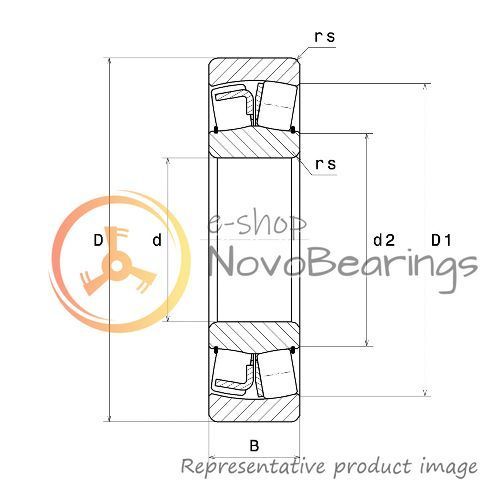

Dimensions [d x D x W] 140х300х102 mm.
Bore diameter (d) 5.512 in. / 140 mm.
Outside diameter (D) 11.811 in. / 300 mm.
Width (B) 4.016 in. / 102 mm.
Weight 17.6901 lbs. / 39 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

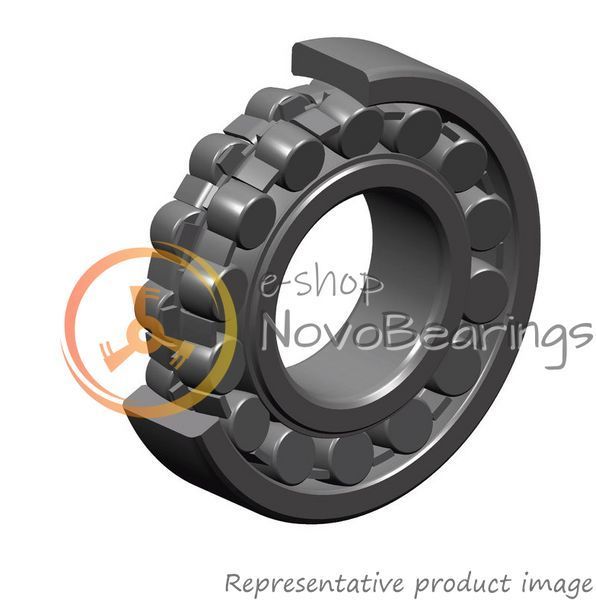

Double row open spherical roller bearing NTN 22328EAD1C3 for cylindrical shafts, with holes and lubrication groove on the outer ring, cylindrical outer surface. Separator made of pressed sheet steel. Bearing dimensions: 140*300*102 mm.
Increased radial clearance (C3).

The maximum rotation speed is 2200 rpm. Design dynamic load 1540 kN, design static load 1720 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

22328EAD1C3 NTN Bearing (140х300х102 mm.)

Out of stock
SKU: 22328EAD1C3NTN140X300X102!#_
Price upon request
